Home / DC-DC Module Type / SFTN01-N

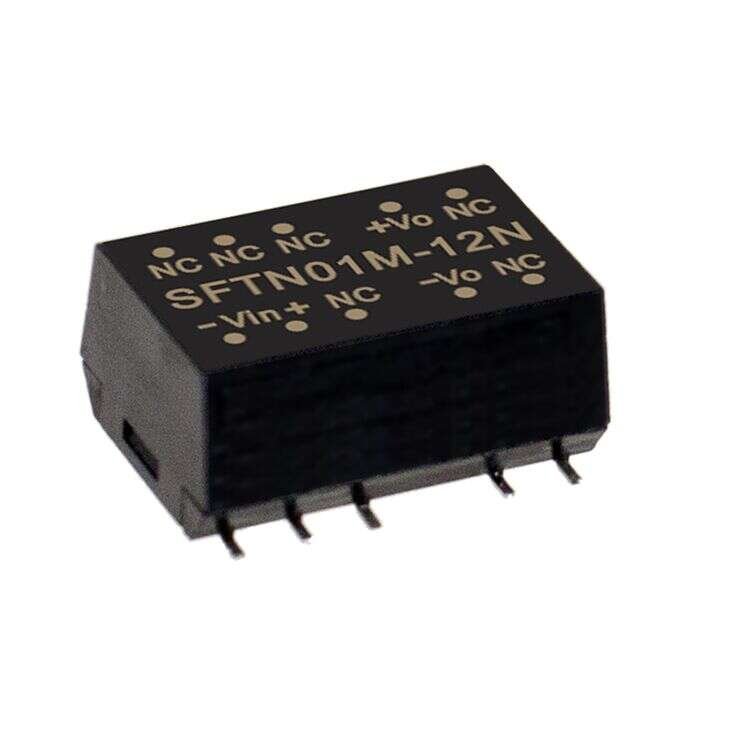

SFTN01-N Series
1W SMD Package DC-DC Unregulated Converter
SFTN01-N Series Main Features:
SMD package with industry standard pinout
Operating temperature range -40~+100℃
Models:
Manufacturer:
Type:
Other features:
SFTN01L-05N / SFTN01L-09N
SFTN01L-12N / SFTN01L-15N
SFTN01M-05N / SFTN01M-09N
SFTN01M-12N / SFTN01M-15N
SFTN01N-05N / SFTN01N-09N
SFTN01N-12N / SFTN01N-15N
MEAN WELL
Module
High efficiency up to 82%
3KVDC I/O isolation
Low cost
3.3Vo models available
3 years warranty
Quote Request
| SFTN01L-05N | SFTN01L-09N | SFTN01L-12N | SFTN01L-15N | SFTN01M-05N | SFTN01M-09N | SFTN01M-12N | SFTN01M-15N | SFTN01N-05N | SFTN01N-09N | SFTN01N-12N | SFTN01N-15N | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| Input Voltage | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | |||||
| Output Current | 20~200mA | 11.1~111mA | 8.4~84mA | 6.7~67mA | 20~200mA | 11.1~111mA | 8.4~84mA | 6.7~67mA | 20~200mA | 11 1~111mA | 8.4~84mA | 6.7~67mA | |||||
| Output Voltage | 5V | 9V | 12V | 15V | 5V | 9V | 12V | 15V | 5V | 9V | 12V | 15V | |||||
| Dimensions | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | |||||
| Working Temperature | -40~+100°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | ||||||||||||||||
