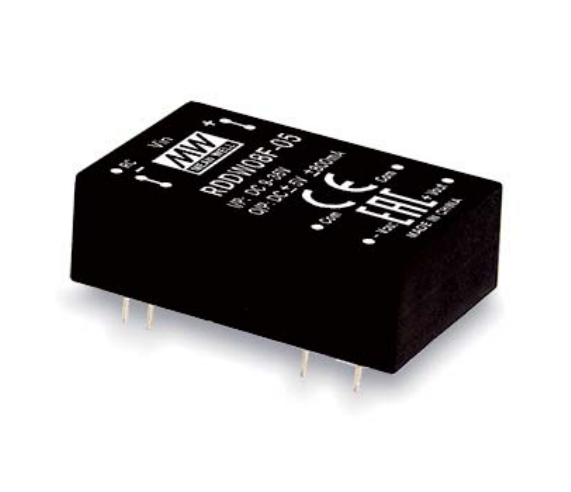

RDDW08 Series
8W DIP Package Reliable Railway DC-DC Converter
RDDW08 Series Main Features:
1.5KVDC I/O isolation
DIP24 package with standard pinout
4:1 wide input range
Wide operating temperature range -40~85℃
Models:
Manufacturer:
Type:
Other features:
RDDW08F-05 / RDDW08F-12
RDDW08F-15 / RDDW08G-05
RDDW08G-12 / RDDW08G-15
MEAN WELL
Module
Compliance with EN50155 railway standard
Protections: Short circuit / Overload /
Over voltage / Input under voltage
Full encapsulated
No minimum load required
Remote ON/OFF control
3 years warranty
Quote Request
| RDDW08F-05 | RDDW08F-12 | RDDW08F-15 | RDDW08G-05 | RDDW08G-12 | RDDW08G-15 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 8 | 8 | 8 | 8 | 8 | 8 | |||||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | |||||||||||
| Output Current | ±0~800mA | ±0~333mA | ±0~265mA | ±0~800mA | ±0~333mA | ±0~265mA | |||||||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | |||||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | |||||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
