Home / DC-DC Module Type / DCW12

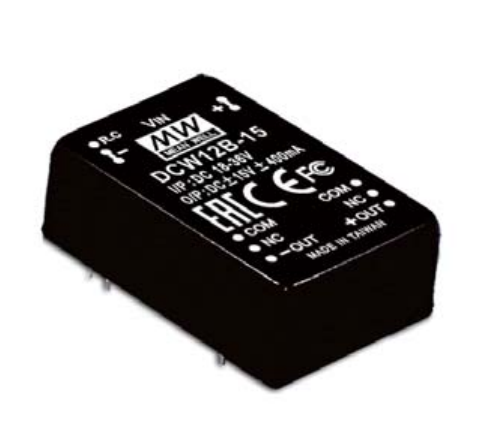

DCW12 Series
12W DC-DC Regulated Dual Output Converter
DCW12 Series Main Features:
1500VDC I/O isolation
2:1 wide input range
Built-in EMI filter
Models:
Manufacturer:
Type:
Other features:
DCW12A-05 / DCW12B-05
DCW12C-05 / DCW12A-12
DCW12B-12 / DCW12C-12
DCW12A-15 / DCW12B-15
DCW12C-15
MEAN WELL
Module
Cooling by free air convection
Protections: Short circuit / Overload
Five-sided shield metal case
100% burn-in test
Low cost / High reliability
Built-in remote ON/OFF control
2 years warranty
Quote Request
| DCW12A-05 | DCW12B-05 | DCW12C-05 | DCW12A-12 | DCW12B-12 | DCW12C-12 | DCW12A-15 | DCW12B-15 | DCW12C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||||||||
| Input Voltage | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | ||||||||
| Output Current | ±240~1200mA | ±240~1200mA | ±240~1200mA | ±100~500mA | ±100~500mA | ±100~500mA | ±80~400mA | ±80~400mA | ±80~400mA | ||||||||
| Output Voltage | ±5V | ±5V | ±5V | ±12V | ±12V | ±12V | ±15V | ±15V | ±15V | ||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | ||||||||
| Working Temperature | -40~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | ||||||||||||||||
