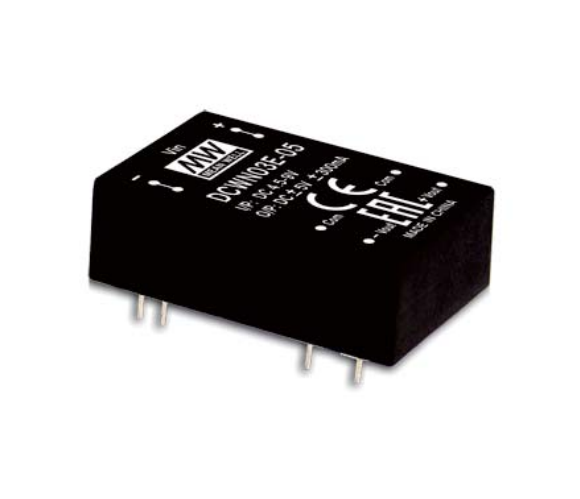

DCWN03 Series
3W DIP Package DC-DC Regulated Converter
DCWN03 Series Main Features:
3KVDC I/O isolation
DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40~90℃
Models:
Manufacturer:
Type:
Other features:
DCWN03E-05 / DCWN03E-12
DCWN03E-15 / DCWN03A-05
DCWN03A-12 / DCWN03A-15
DCWN03B-05 / DCWN03B-12
DCWN03B-15 / DCWN03C-05
DCWN03C-12 / DCWN03C-15
MEAN WELL
Module
Comply to BS EN/EN55032 radiated Class
A without additional components
Protections: Short circuit / Overload / Input under voltage
High efficiency up to 87%
No minimum load required
3 years warranty
Quote Request
| DCWN03E-05 | DCWN03E-12 | DCWN03E-15 | DCWN03A-05 | DCWN03A-12 | DCWN03A-15 | DCWN03B-05 | DCWN03B-12 | DCWN03B-15 | DCWN03C-05 | DCWN03C-12 | DCWN03C-15 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||
| Input Voltage | 4.5~9V | 4.5~9V | 4.5~9V | 9~18V | 9~18V | 9~18V | 18~36V | 18~36V | 18~36V | 36~72V | 36~72V | 36~72V | |||||
| Output Current | ±0~300mA | ±0~125mA | ±0~100mA | ±0~300mA | ±0~125mA | ±0~100mA | ±0~300mA | ±0~125mA | ±0~100mA | ±0~300mA | ±0~125mA | ±0~100mA | |||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | |||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | |||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
