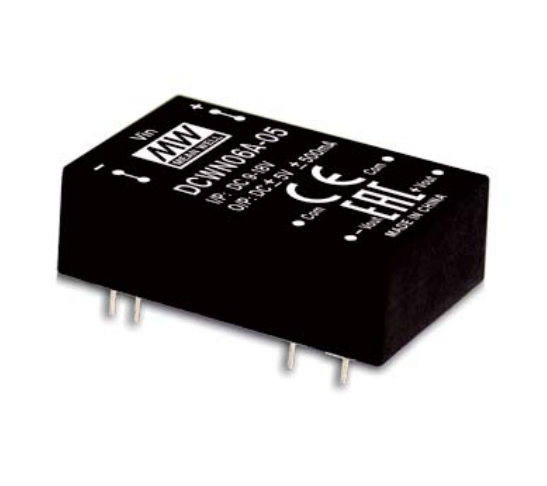

DCWN06 Series
6W DIP Package DC-DC Regulated Converter
DCWN06 Series Main Features:
3KVDC I/O isolation
DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40~90℃
Models:
Manufacturer:
Type:
Other features:
DCWN06A-05 / DCWN06A-12
DCWN06A-15 / DCWN06B-05
DCWN06B-12 / DCWN06B-15
DCWN06C-05 / DCWN06C-12
DCWN06C-15
MEAN WELL
Module
Comply to BS EN/EN55032 radiated Class
A without additional components
Protections: Short circuit / Overload / Input under voltage
High efficiency up to 87%
No minimum load required
3 years warranty
Quote Request
| DCWN06A-05 | DCWN06A-12 | DCWN06A-15 | DCWN06B-05 | DCWN06B-12 | DCWN06B-15 | DCWN06C-05 | DCWN06C-12 | DCWN06C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||
| Input Voltage | 9~18V | 9~18V | 9~18V | 18~36V | 18~36V | 18~36V | 36~72V | 36~72V | 36~72V | ||||||||
| Output Current | ±0~500mA | ±0~250mA | ±0~200mA | ±0~500mA | ±0~250mA | ±0~200mA | ±0~500mA | ±0~250mA | ±0~200mA | ||||||||
| Output Voltage | ±5V | ±12V | ±15V | 15V | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | |||||||
| Dimensions | 31.8x20.3x10.2 | 31.8x20.3x10.2 | 31.8x20.3x10.2 | 31.8x20.3x10.2 | 31.8x20.3x10.2 | 31.8x20.3x10.2 | 31.8x20.3x10.2 | 31.8x20.3x10.2 | 31.8x20.3x10.2 | ||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
