Home / DC-DC Module Type / DETN01

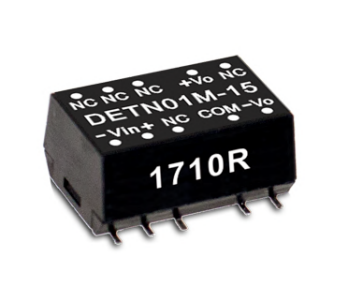

DETN01 Series
1W SMD Package DC-DC Unregulated Converter
DETN01 Series Main Features:
SMD package with industry standard pinout
Operating temperature range -40~+90℃
Comply to BS EN/EN55032 radiated Class B without additional components
Models:
Manufacturer:
Type:
Other features:
DETN01L-05 / DETN01L-12
DETN01L-15 / DETN01M-05
DETN01M-12 / DETN01M-15
DETN01N-05 / DETN01N-12
DETN01N-15
MEAN WELL
Module
High efficiency up to 83%
Protections: Short circuit
Optional reel packing
3KVDC I/O isolation
Low cost
3 years warranty
Quote Request
| DETN01L-05 | DETN01L-12 | DETN01L-15 | DETN01M-05 | DETN01M-12 | DETN01M-15 | DETN01N-05 | DETN01N-12 | DETN01N-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
| Input Voltage | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | ||||||||
| Output Current | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ||||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ||||||||
| Dimensions | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | ||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | UL62368-1, EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
