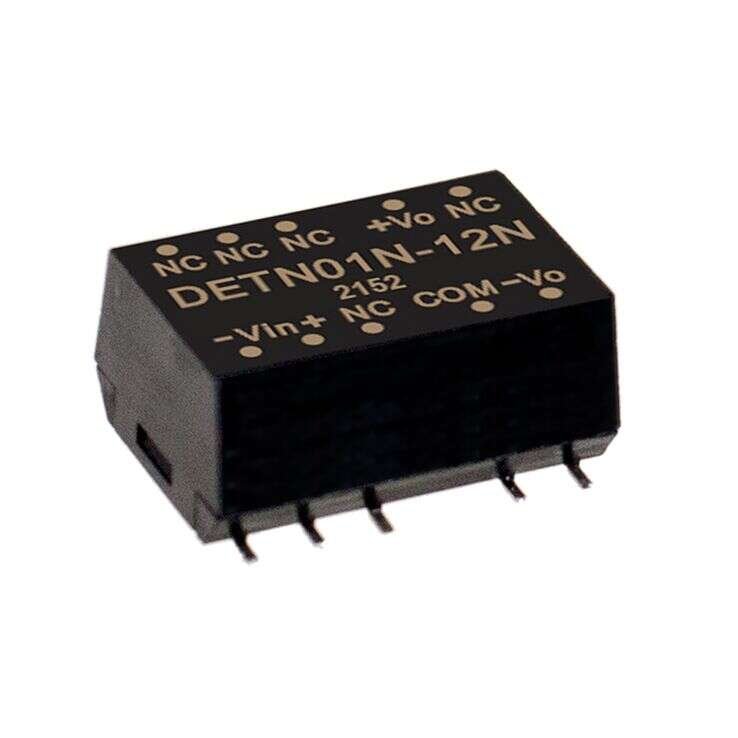

DETN01-N Series
1W SMD Package DC-DC Unregulated Converter
DETN01-N Series Main Features:
DETN01-N series is 1W isolated and unregulated module type DC-DC converter with SMD package
Models:
Manufacturer:
Type:
Other features:
DETN01L-05N / DETN01L-12N
DETN01L-15N / DET01M-05N
DETN01M-12N / DETN01M-15N
DETN01N-05N / DETN01N-12N
DETN01N-15N
MEAN WELL
Module
High efficiency up to 83%
3KVDC I/O isolation
SMD package with industry standard pinout
Operating temperature -40~100°C
±3.3Vo models available
Low cost
3 years warranty
Quote Request
| DETN01L-05N | DETN01L-12N | DETN01L-15N | DET01M-05N | DETN01M-12N | DETN01M-15N | DETN01N-05N | DETN01N-12N | DETN01N-15N | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
| Input Voltage | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | ||||||||
| Output Current | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ±10~100mA | ±4.2~42mA | ±3.4~34mA | ||||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ||||||||
| Dimensions | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | ||||||||
| Working Temperature | -40~+100°C | ||||||||||||||||
| Satety Standards | EAC TP TC 004 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | ||||||||||||||||
