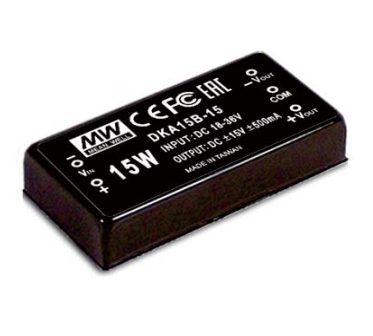

DKA15 Series
15W DC-DC Regulated Dual Output Converter
DKA15 Series Main Features:
2:1 wide input range
4:1 wide input range (option)
3KVDC I/O isolation(option)
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
DKA15A-05 / DKA15B-05
DKA15C-05 / DKA15A-12
DKA15B-12 / DKA15C-12
DKA15A-15 / DKA15B-15
DKA15C-15
MEAN WELL
Module
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Overload
Six-sided shield metal case
100% burn-in test
Low cost / High reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty
Quote Request
| DKA15A-05 | DKA15B-05 | DKA15C-05 | DKA15A-12 | DKA15B-12 | DKA15C-12 | DKA15A-15 | DKA15B-15 | DKA15C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | ||||||||
| Input Voltage | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | ||||||||
| Output Current | ±150~1500mA | ±150~1500mA | ±150~1500mA | ±62.5~625mA | ±62.5~625mA | ±62.5~625mA | ±50~500mA | ±50~500mA | ±50~500mA | ||||||||
| Output Voltage | ±5V | ±5V | ±5V | ±12V | ±12V | ±12V | ±15V | ±15V | ±15V | ||||||||
| Dimensions | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | ||||||||
| Working Temperature | -40~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | ||||||||||||||||
