Home / DC-DC Module Type / DKA30

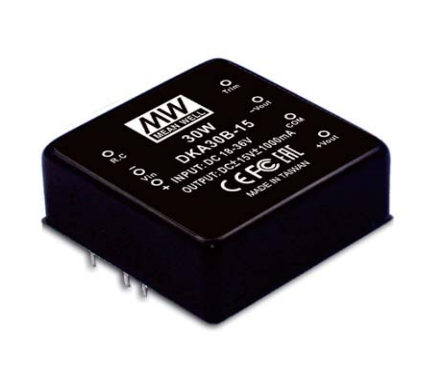

DKA30 Series
25~30W DC-DC Dual Output Converter
DKA30 Series Main Features:
2:1 wide input range
4:1 wide input range (option)
1.5KVDC I/O isolation
Remote ON/OFF control
Models:
Manufacturer:
Type:
Other features:
DKA30A-05 / DKA30B-05
DKA30C-05 / DKA30A-12
DKA30B-12 / DKA30C-12
DKA30A-15 / DKA30B-15
DKA30C-15
MEAN WELL
Module
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Overload
Six-sided shield metal case
100% burn-in test
Epoxy encapsulated
Approvals: FCC / EAC / CE / UKCA
2 years warranty
Quote Request
| DKA30A-05 | DKA30B-05 | DKA30C-05 | DKA30A-12 | DKA30B-12 | DKA30C-12 | DKA30A-15 | DKA30B-15 | DKA30C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||
| Input Voltage | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | ||||||||
| Output Current | ±250~2500mA | ±250~2500mA | ±250~2500mA | ±125~1250mA | ±125~1250mA | ±125~1250mA | ±100~1000mA | ±100~1000mA | ±100~1000mA | ||||||||
| Output Voltage | ±5V | ±5V | ±5V | ±12V | ±12V | ±12V | ±15V | ±15V | ±15V | ||||||||
| Dimensions | 50.8x50.8x21 | 50.8x50.8x21 | 50.8x50.8x21 | 50.8x50.8x21 | 50.8x50.8x21 | 50.8x50.8x21 | 50.8x50.8x21 | 50.8x50.8x21 | 50.8x50.8x21 | ||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | ||||||||||||||||
