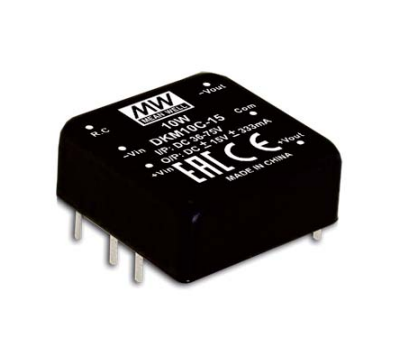

DKM10 Series

10W 1"x1" Package DC-DC Regulated Converter

DKM10

DKM10 Series Main Features:

DIP 1"x1" package with industry standard pinout

2:1 wide input range

Operating temperature range -40~85℃

1.5KVDC I/O isolation

Models:

Manufacturer:

Type:

Other features:

DKM10E-05 / DKM10E-12
DKM10E-15 / DKM10A-05
DKM10A-12 / DKM10A-15
DKM10B-05 / DKM10B-12
DKM10B-15 / DKM10C-05
DKM10C-12 / DKM10C-15

MEAN WELL

Module

Comply to BS EN/EN55032 radiated Class
A without additonal components

No minimum load reuqired

Protections: Short circuit / Overload /
Over voltage / Input under voltage

High efficiecy tup to 90%

Remote ON/OFF control and Triming output

3 years warranty

Quote Request

    DKM10E-05DKM10E-12DKM10E-15DKM10A-05DKM10A-12DKM10A-15DKM10B-05DKM10B-12DKM10B-15DKM10C-05DKM10C-12DKM10C-15
    Wattage101010101010101010101010
    Input Voltage4.7~9V4.7~9V4.7~9V9~18V9~18V9~18V18~36V18~36V18~36V36~75V36~75V36~75V
    Output Current±0~1000mA±0~416mA±0~333mA±0~1000mA±0~416mA±0~333mA±0~1000mA±0~416mA±0~333mA±0~1000mA±0~416mA±0~333mA
    Output Voltage±5V±12V±15V±5V±12V±15V±5V±12V±15V±5V±12V±15V
    Dimensions25.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.225.4x25.4x10.2
    Working Temperature-40~+85°C
    Satety StandardsEAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
    EMC Standards BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4
