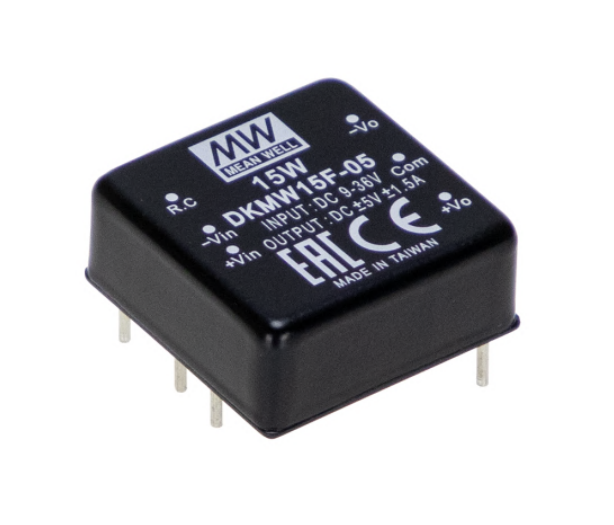

DKMW15 Series
15W 1"x1" Package DC-DC Regulated Converter
DKMW15 Series Main Features:
DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40~85℃
3KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
DKMW15F-05 / DKMW15F-12
DKMW15F-15 / DKMW15G-05
DKMW15G-12 / DKMW15G-15
MEAN WELL
Module
Comply to BS EN/EN55032 radiated Class
A without additonal components
No minimum load reuqired
Protections: Short circuit / Overload /
Over voltage / Input under voltage
High efficiecy tup to 89%
3 years warranty
Quote Request
| DKMW15F-05 | DKMW15F-12 | DKMW15F-15 | DKMW15G-05 | DKMW15G-12 | DKMW15G-15 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 15 | 15 | 15 | 15 | 15 | |||||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | |||||||||||
| Output Current | ±0~1500mA | ±0~625mA | ±0~500mA | ±0~1500mA | ±0~625mA | ±0~500mA | |||||||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | |||||||||||
| Dimensions | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | |||||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
