Home / DC-DC Module Type / DKMW20

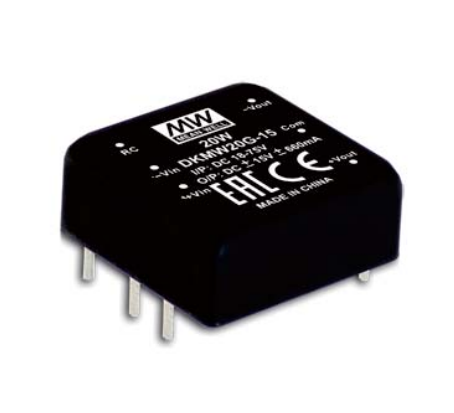

DKMW20 Series
20W 1"x1" Package DC-DC Regulated Converter
DKMW20 Series Main Features:
DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40~85℃
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
DKMW20F-12 / DKMW20F-15
DKMW20G-12 / DKMW20G-15
MEAN WELL
Module
Comply to BS EN/EN55032 radiated Class
A without additonal components
No minimum load reuqired
Protections: Short circuit / Overload /
Over voltage / Input under voltage
High efficiecy tup to 89%
Remote ON/OFF control and Triming output
3 years warranty
Quote Request
| DKMW20F-12 | DKMW20F-15 | DKMW20G-12 | DKMW20G-15 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 20 | 20 | 20 | |||||||||||||
| Input Voltage | 9~36V | 9~36V | 18~75V | 18~75V | |||||||||||||
| Output Current | ±0~830mA | ±0~660mA | ±0~830mA | ±0~660mA | |||||||||||||
| Output Voltage | ±12V | ±15V | ±12V | ±15V | |||||||||||||
| Dimensions | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | |||||||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
