DPB09 Series

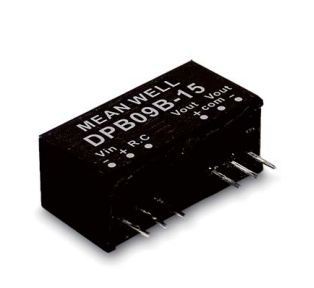

9W SIP Package DC-DC Regulated Converter
DPB09 Series Main Features:
SIP8 package with industry standard pinout
Operating temperature range -40~+90℃
No minimum load required
High efficiency up to 89%
Models:
Manufacturer:
Type:
Other features:
DPB09A-05 / DPB09A-12
DPB09A-15 / DPB09B-05
DPB09B-12 / DPB09B-15
DPB09C-05 / DPB09C-12
DPB09C-15
MEAN WELL
Module
Protections: Short circuit (Continuous)/Over
-load / Input under voltage
2:1 wide input range
1.5KVDC I/O isolation
Remote ON/OFF control
9V model available(optional)
3 years warranty
Quote Request
| DPB09A-05 | DPB09A-12 | DPB09A-15 | DPB09B-05 | DPB09B-12 | DPB09B-15 | DPB09C-05 | DPB09C-12 | DPB09C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | ||||||||
| Input Voltage | 9~18V | 9~18V | 9~18V | 18~36V | 18~36V | 18~36V | 36~75V | 36~75V | 36~75V | ||||||||
| Output Current | ±0~800mA | ±0~375mA | ±0~300mA | ±0~800mA | ±0~375mA | ±0~300mA | ±0~800mA | ±0~375mA | ±0~300mA | ||||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ||||||||
| Dimensions | 24x9.6x11.2 | 24x9.6x11.2 | 24x9.6x11.2 | 24x9.6x11.2 | 24x9.6x11.2 | 24x9.6x11.2 | 24x9.6x11.2 | 24x9.6x11.2 | 24x9.6x11.2 | ||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
