Home / DC-DC Module Type / DPBW03

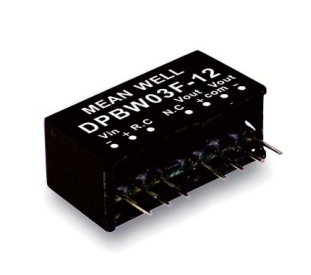

DPBW03 Series
3W SIP Package DC-DC Regulated Converter
DPBW03 Series Main Features:
SIP8 package with industry standard pinout
Operating temperature range -40~+85℃
Comply to BS EN/EN55032 radiated Class A/B with additional components
Models:
Manufacturer:
Type:
Other features:
DPBW03F-05 / DPBW03F-12
DPBW03F-15 / DPBW03G-05
DPBW03G-12 / DPBW03G-15
MEAN WELL
Module
High efficiency up to 85%
Protections: Short circuit (Continuous)/Over
-load / Input under voltage
4:1 ultrawide input range
1.5KVDC I/O isolation
Remote ON/OFF control
No minimum load required
3 years warranty
Quote Request
| DPBW03F-05 | DPBW03F-12 | DPBW03F-15 | DPBW03G-05 | DPBW03G-12 | DPBW03G-15 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3 | 3 | 3 | 3 | 3 | 3 | |||||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | |||||||||||
| Output Current | ±0~300mA | ±0~125mA | ±0~100mA | ±0~300mA | ±0~125mA | ±0~100mA | |||||||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | |||||||||||
| Dimensions | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | |||||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
