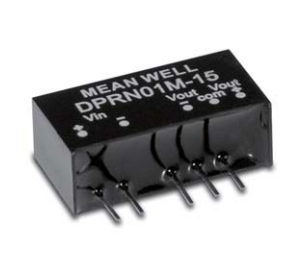

DPRN01 Series
1W SIP Package DC-DC Regulated Converter
DPRN01 Series Main Features:
SIP6 package with industry standard pinout
Operating temperature range -40~+90℃
Comply to BS EN/EN55032 radiated Class B without additional components
Models:
Manufacturer:
Type:
Other features:
DPRN01L-12 / DPRN01L-15
DPRN01M-12
/ DPRN01M-15
DPRN01N-12 / DPRN01N-15
DPRN01O-12 / DPRN01O-15
MEAN WELL
Module
Protections: Short circuit
Low cost
1.5KVDC I/O isolation
3 years warranty
Quote Request
| DPRN01L-12 | DPRN01L-15 | DPRN01M-12 | DPRN01M-15 | DPRN01N-12 | DPRN01N-15 | DPRN01O-12 | DPRN01O-15 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| Input Voltage | 4.75~5.5V | 4.75~5.5V | 11.4~13.2V | 11.4~13.2V | 22.8~26.4V | 22.8~26.4V | 45.6~52.8V | 45.6~52.8V | |||||||||
| Output Current | ±0~42mA | ±0~34mA | ±0~42mA | ±0~34mA | ±0~42mA | ±0~34mA | ±0~42mA | ±0~34mA | |||||||||
| Output Voltage | ±12V | ±15V | ±12V | ±15V | ±12V | ±15V | ±12V | ±15V | |||||||||
| Dimensions | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | |||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
