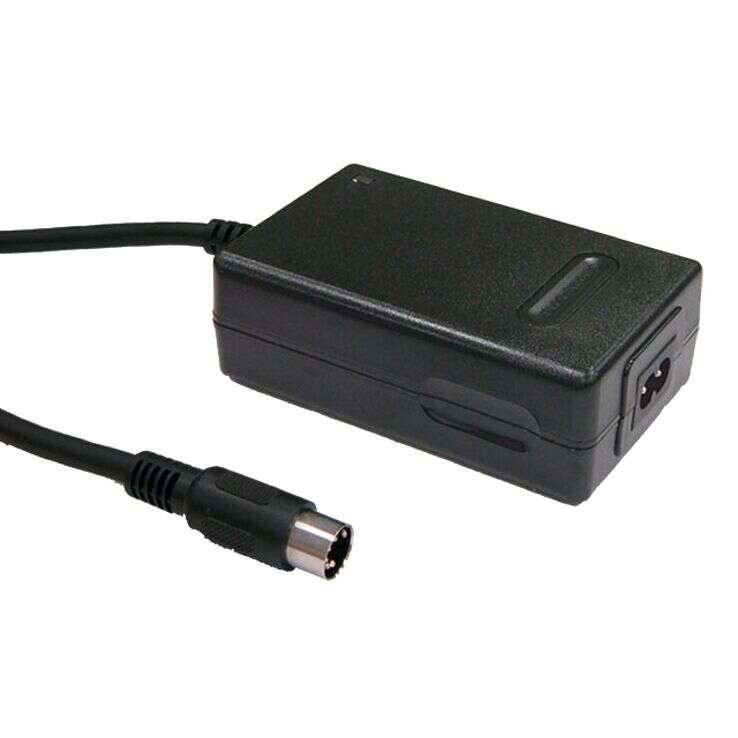

GP25B Series
External Power Supplies 28–37.77W
GP25B Series Main Features:
GP25B is a 25W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level VI)
Models:
Manufacturer:
Type:
Other features:
GP25B13A-R1B / GP25B13D-R1B
GP25B14E-R1B / GP25B58F-R1B(option)
MEAN WELL
Adaptor
Comply with EISA 2007/DoE
Universal AC Input / Full range
Protections: short circuit/ overload/
over voltage
2 pole AC inlet IEC320-C8, Class II power unit
No load power consumption <0.3W
Energy efficiency Level VI
Fully enclosed plastic case
Dual output available (optional)
± 16V / +48V also available for video system
LED indicator for power on
3 years warranty
Quote Request
| GP25B13A-R1B | GP25B13D-R1B | GP25B14E-R1B | GP25B58F-R1B(option) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 28.5 | 28 | 29 | 37.77 | ||||||||||||
| Input Voltage | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | ||||||||||||
| Output Current | 2.5A, 1.2A, 0.3A | 2.5A, 1A, 0.3A | 2.5A, 0.8A, 0.3A | 1.5A, 0.087A, 1.05A | ||||||||||||
| Output Voltage | 5V, 12V, -5V | 5V, 12V, -12V | 5V, 15V, -15V | 16V, 48V, -16V | ||||||||||||
| Dimensions | 107.5x67x36 | 107.5x67x36 | 107.5x67x36 | 107.5x67x36 | ||||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | IEC62368-1, UL62368-1, CSA22.2, EN62368-1(Except for GS25B58FR1B) EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55032(CISPR32), FCC PART 15/CISPR22, CANICES-3(B)NMB-3(B), EN61000-3-2, EN61000-3-3 | |||||||||||||||
