NGE18 Series
External Power Supplies 15–18W
NGE18 Series Main Features:

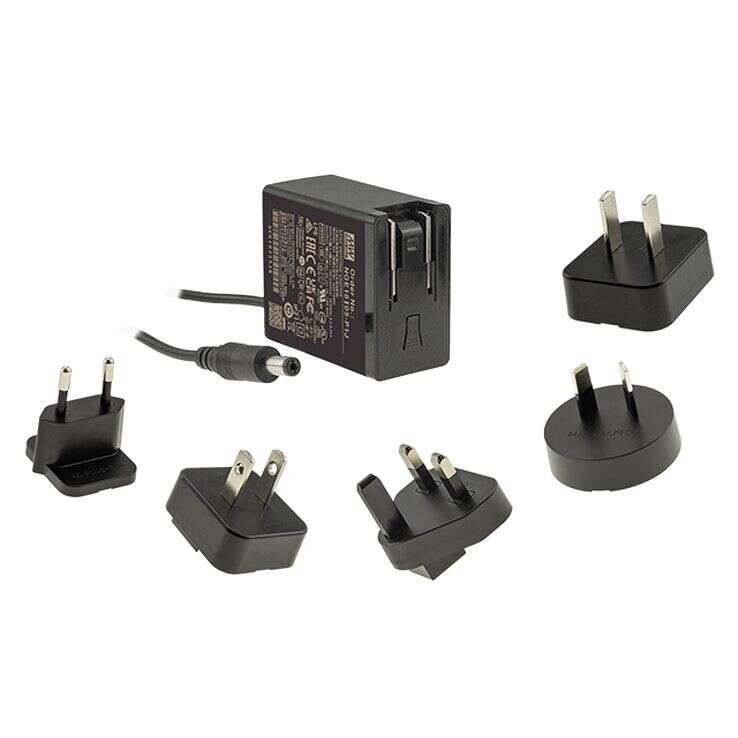

NGE18 is a highly reliable, 18W wall-mounted style single-output green adaptor series, which is compact and convenient for carry
Models:
Manufacturer:
Type:
Other features:
NGE18I05-P1J / NGE18I09-P1J
NGE18I12-P1J / NGE18I15-P1J
NGE18I18-P1J / NGE18I24-P1J
MEAN WELL
Adaptor
Interchangeable AC plugs
Universal AC Input / Full range
Ultra slim (28mm)
No load power consumption <0.075W
Energy efficiency Level VI
Class II power (no earth pin)
Protections: Short circuit / Overload /
Over voltage
Extremely leakage current <100uA
Pass LPS
3 years warranty
Quote Request
| NGE18I05-P1J | NGE18I09-P1J | NGE18I12-P1J | NGE18I15-P1J | NGE18I18-P1J | NGE18I24-P1J | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 18 | 18 | 18 | 18 | 18 | ||||||||||
| Input Voltage | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | ||||||||||
| Output Current | 3A | 2A | 1.5A | 1.2A | 1A | 0.75A | ||||||||||
| Output Voltage | 5V | 9V | 12V | 15V | 18V | 24V | ||||||||||
| Dimensions | 48x28x55 | 48x28x55 | 48x28x55 | 48x28x55 | 48x28x55 | 48x28x55 | ||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-6 BS EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11 | |||||||||||||||
