Home / AC-DC Adaptor / GST18A

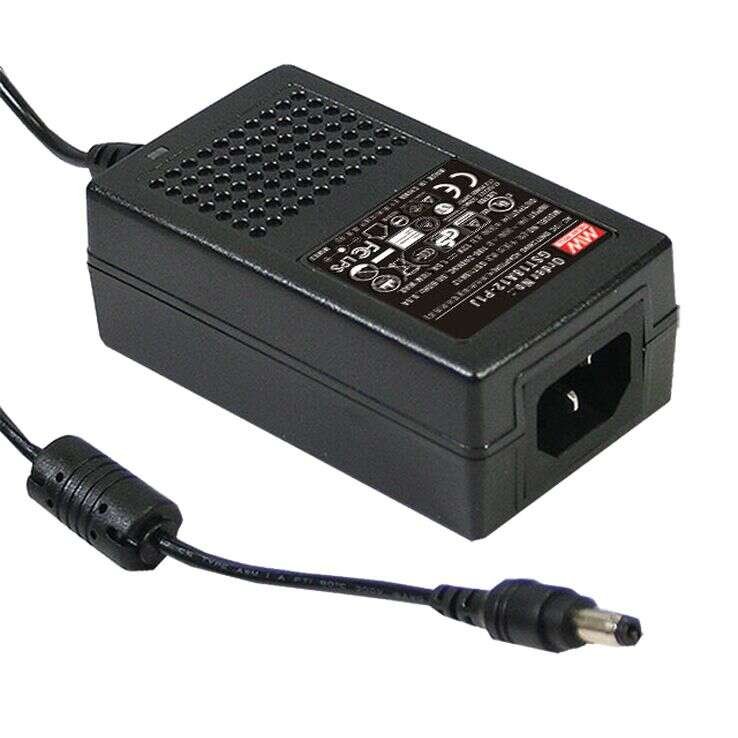

GST18A Series

External Power Supplies 15–18W

GST18A

GST18A Series Main Features:

Fanless design with -30~+70°C working temperature

No load power consumption <0.075W

Models:

Manufacturer:

Type:

Other features:

GST18A05-P1J / GST18A07-P1J
GST18A09-P1J / GST18A12-P1J
GST18A15-P1J / GST18A18-P1J
GST18A24-P1J / GST18A28-P1J
GST18A48-P1J

MEAN WELL

Adaptor

Protections: Short circuit / Overload /
Over voltage

Universal AC input/full range

3 pole AC inlet IEC320-C14

Pass LPS

Energy efficiency level VI

Fully enclosed plastic case

Class I power (without earth pin)

Meet EISA 2007

3 years warranty

Quote Request

    GST18A05-P1JGST18A07-P1JGST18A09-P1JGST18A12-P1JGST18A15-P1JGST18A18-P1JGST18A24-P1JGST18A28-P1JGST18A48-P1J
    Wattage151518181818181818
    Input Voltage85-264VAC85-264VAC85-264VAC85-264VAC85-264VAC85-264VAC85-264VAC85-264VAC85-264VAC
    Output Current3A2A2A1.5A1.2A1A0.75A0.64A0.375A
    Output Voltage5V7.5V9V12V15V18V24V28V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions93x54x3693x54x3693x54x3693x54x3693x54x3693x54x3693x54x3693x54x3693x54x36
    Working Temperature-30~+70°C
    Satety StandardsUL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved
    EMC StandardsCompliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A
