Home / AC-DC Adaptor / GP50A

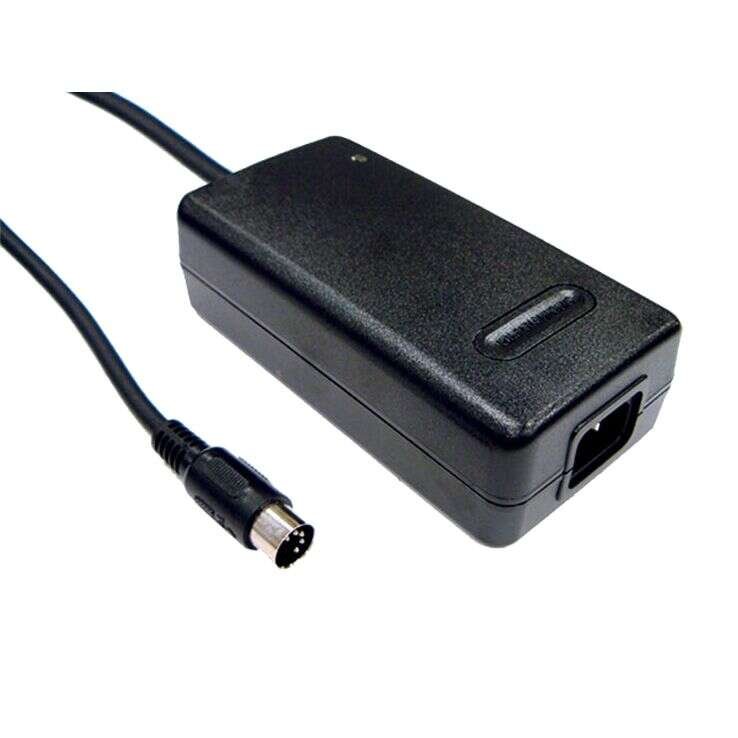

GP50A Series
External Power Supplies 46.5–71.2W
GP50A Series Main Features:
GP50A is a 50W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level VI)
Models:
Manufacturer:
Type:
Other features:
GP50A13A-R1B / GP50A13D-R1B
GP50A14E-R1B / GP50A58F-R1B(option)
MEAN WELL
Adaptor
Comply with EISA 2007/DoE
Universal AC Input / Full range
3 pole AC inlet IEC320-C14, Class I power unit
No load power consumption <0.3W
Energy efficiency Level VI
Protections: short circuit/ overload/
over voltage
Dual output available (optional)
LED indicator for power on
± 16V / +48V also available for video system
3 years warranty
Quote Request
| GP50A13A-R1B | GP50A13D-R1B | GP50A14E-R1B | GP50A58F-R1B(option) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 46.5 | 50 | 50 | 71.2 | ||||||||||||
| Input Voltage | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | ||||||||||||
| Output Current | 4A, 2A, 0.5A | 4A, 2A, 0.5A | 4A, 1.5A, 0.5A | 2A, 0.15A, 2A | ||||||||||||
| Output Voltage | 5V, 12V, -5V | 5V, 12V, -12V | 5V, 15V, -15V | 16V, 48V, -16V | ||||||||||||
| Dimensions | 146x75.5x43 | 146x75.5x43 | 146x75.5x43 | 146x75.5x43 | ||||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | IEC62368-2, UL62368-1, CSA22.2, EN62368-1(Except for GP50A58F-R1B), EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55032(CISPR32), FCC PART 15/CISPR22, CANICES-3(B)NMB-3)B), EN61000-3-2, EN61000-3-3 | |||||||||||||||
