Home / AC-DC Adaptor / GSM120A

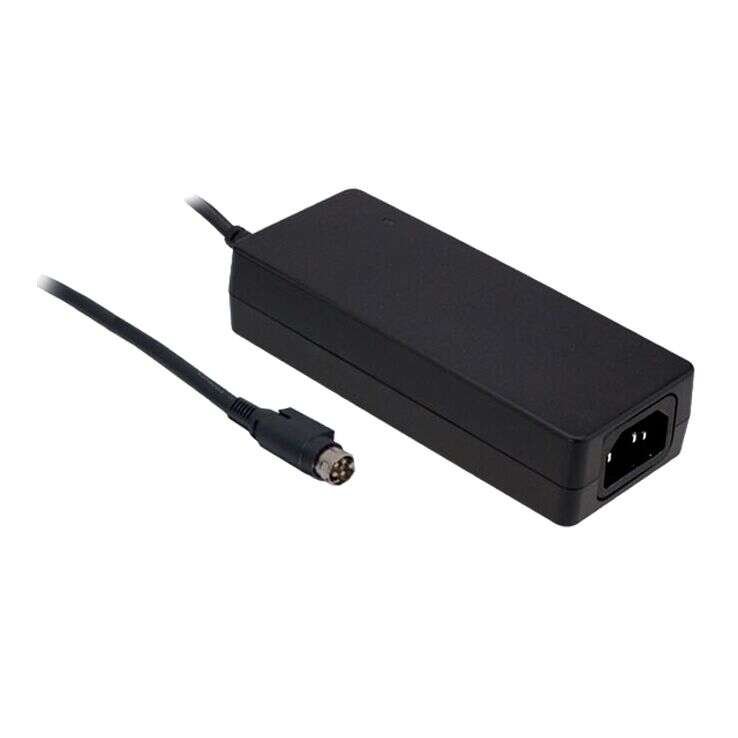

GSM120A Series
Medical Grade Power Supplies 102–120W
GSM120A Series Main Features:
No load power consumption <0.15W
Medical safety approved (2x MOPP between primary to secondary)
Low leakage current <100µA
Models:
Manufacturer:
Type:
Other features:
GSM120A12-R7B / GSM120A15-R7B
GSM120A20-R7B / GSM120A24-R7B
GSM120A48-R7B
MEAN WELL
Adaptor
Protections: Short circuit / Overload /
Over voltage / Over temperature
Universal AC input / Full range
100% full load burn-in test
Energy efficiency level VI
3 pole AC inlet IEC320-C14
Fully enclosed plastic case
Medical safety approved (MOPP level)
Built-in active PFC function
EU ErP and meet CoC Version 5
LED indicator for power on
3 years warranty
Quote Request
| GSM120A12-R7B | GSM120A15-R7B | GSM120A20-R7B | GSM120A24-R7B | GSM120A48-R7B | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 102 | 105 | 120 | 120 | 120 | |||||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | |||||||||||
| Output Current | 8.5A | 7A | 6A | 5A | 2.5A | |||||||||||
| Output Current Options | Single | Single | Single | Single | Single | |||||||||||
| Output Voltage | 12V | 15V | 20V | 24V | 48V | |||||||||||
| Dimensions | 167x67x35 | 167x67x35 | 167x67x35 | 167x67x35 | 167x67x35 | |||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011 (CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B. Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3 medical level, criteria A | |||||||||||||||
