Home / AC-DC Adaptor / GSM18B

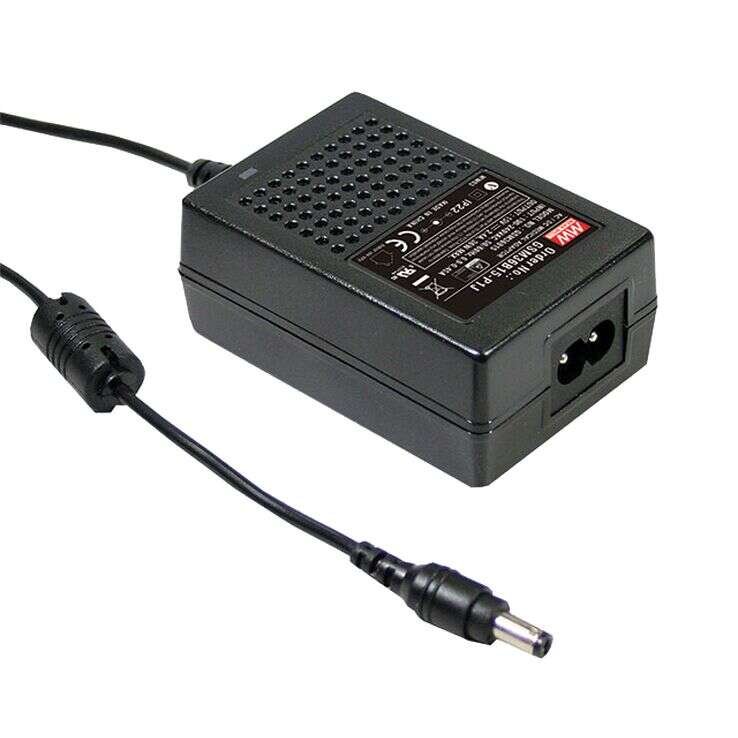

GSM18B Series
Medical Grade Power Supplies 15–18W
GSM18B Series Main Features:
Medical safety approved (2 × MOPP between primary to secondary)
Low leakage current <50 A
Universal AC input / Full range
Models:
Manufacturer:
Type:
Other features:
GSM18B05-P1J / GSM18B07-P1J
GSM18B09-P1J / GSM18B12-P1J
GSM18B15-P1J / GSM18B18-P1J
GSM18B24-P1J / GSM18B48-P1J
MEAN WELL
Adaptor
Protections: Short circuit / Overload /
Over voltage
2 pole AC inlet IEC320-C8
High efficiency up to 88%
Fully enclosed plastic case
Class b! power (without earth pin)
LED indicator for power on
No load power consumption<0.1W
ErP step2 compliant (level b$)
3 years warranty
Quote Request
| GSM18B05-P1J | GSM18B07-P1J | GSM18B09-P1J | GSM18B12-P1J | GSM18B15-P1J | GSM18B18-P1J | GSM18B24-P1J | GSM18B48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 15 | 18 | 18 | 18 | 18 | 18 | 18 | ||||||||
| Input Voltage | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | ||||||||
| Output Current | 0~3.0A | 0~2.0A | 0~2.0A | 0~1.5A | 0~1.2A | 0~1.0A | 0~0.75A | 0~0.375A | ||||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | ||||||||
| Working Temperature | -30~+60°C | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011(CISPR11) class B, EN61000-3-2,3, FCC PART 18 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3 medical level, criteria A | |||||||||||||||
