GSM18U Series

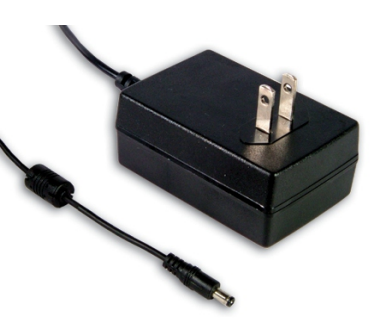

18W AC-DC Reliable Green Medical Adaptor
GSM18U Series Main Features:
Protections: Short circuit / Overload /
Over voltage
LED indicator for power on
Models:
Manufacturer:
Type:
Other features:
GSM18U05-P1J / GSM18U07-P1J
GSM18U09-P1J / GSM18U12-P1J
GSM18U15-P1J / GSM18U18-P1J
GSM18U24-P1J / GSM18U48-P1J
MEAN WELL
Adaptor
Medical safety approved (2 x MOPP)
according to ANSI/AAMI ES60601-1/-1-11
Extremely low leakage current
2 pole USA plugs, Class II power unit
No load power consumption <0.1W
Energy efficiency Level VI(except 5~9V for Level V)
Fully enclosed plastic case
3 years warranty
Quote Request
| GSM18U05-P1J | GSM18U07-P1J | GSM18U09-P1J | GSM18U12-P1J | GSM18U15-P1J | GSM18U18-P1J | GSM18U24-P1J | GSM18U48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 15 | 18 | 18 | 18 | 18 | 18 | 18 | ||||||||
| Input Voltage | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | ||||||||
| Output Current | 3A | 2A | 2A | 1.5A | 1.2A | 1.0A | 0.75A | 0.375A | ||||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | ||||||||
| Working Temperature | -25~+60°C | |||||||||||||||
| Satety Standards | IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1 CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | FCC PART 15 / CISPR22 | |||||||||||||||
