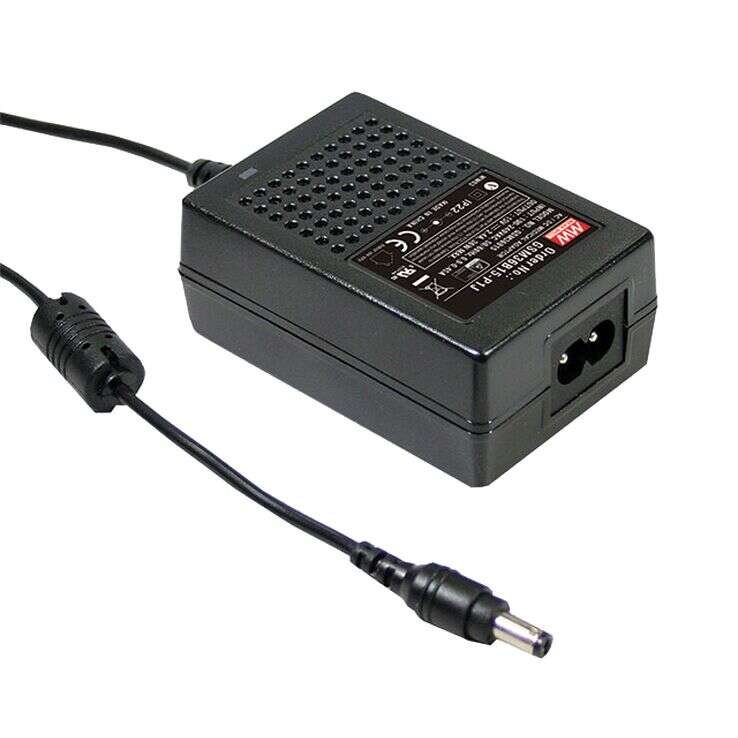

GSM25B Series
Medical Grade Power Supplies 20–25W
GSM25B Series Main Features:
Medical safety approved (2 × MOPP between primary to secondary)
Low leakage current <50A
High efficiency up to 88%
Models:
Manufacturer:
Type:
Other features:
GSM25B05-P1J / GSM25B07-P1J
GSM25B09P1J / GSMB2512-P1J
GSM25B15-P1J / GSM25B18-P1J
GSM25B24-P1J / GSM25B48-P1J
MEAN WELL
Adaptor
Protections: Short circuit / Overload /
Over voltage
Universal AC input / Full range
2 pole AC inlet IEC320-C8
Fully enclosed plastic case
Class b! power (without earth pin)
No load power consumption<0.1W
ErP step2 compliant (level b$)
LED indicator for power on
Optional lock type DC plug
3 years warranty
Quote Request
| GSM25B05-P1J | GSM25B07-P1J | GSM25B09-P1J | GSM25B12-P1J | GSM25B15-P1J | GSM25B18-P1J | GSM25B24-P1J | GSM25B48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | ||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | ||||||||
| Output Current | 4A | 2.93A | 2.77A | 2.08A | 1.66A | 1.38A | 1.04A | 0.52A | ||||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | ||||||||
| Working Temperature | -25~+60°C | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1/ES60601-1-11(3.1 Version), CAN/CSA-C22 3rd edition, TUV EN60601-1/EN60601-1-11, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55011 (CISPR11), FCC PART 15/CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32, EN61000-3-2, EN61000-3-3 | |||||||||||||||
