GSM25E Series

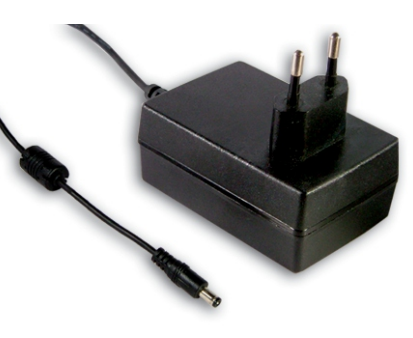

25W AC-DC Reliable Green Medical Adaptor
GSM25E Series Main Features:
Protections: Short circuit / Overload /
Over voltage
LED indicator for power on
Models:
Manufacturer:
Type:
Other features:
GSM25E05-P1J / GSM25E07-P1J
GSM25E09-P1J / GSM25E12-P1J
GSM25E15-P1J / GSM25E18-P1J
GSM25E24-P1J / GSM25E48-P1J
MEAN WELL
Adaptor
Medical safety approved (2 x MOPP)
according to EN60601-1/-1-11
Extremely low leakage current
2 pole EURO plugs, Class II power unit
No load power consumption <0.1W
Energy efficiency Level VI and meet
CoC Version5 (except 5~9V for Level V)
3 years warranty
Quote Request
| GSM25E05-P1J | GSM25E07-P1J | GSM25E09-P1J | GSM25E12-P1J | GSM25E15-P1J | GSM25E18-P1J | GSM25E24-P1J | GSM25E48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 22 | 36 | 36 | 36 | 36 | 36 | 36 | ||||||||
| Input Voltage | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | ||||||||
| Output Current | 4A | 2.93A | 2.77A | 2.08A | 1.66A | 1.38A | 1.04A | 0.52A | ||||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | ||||||||
| Working Temperature | -25~+60°C | |||||||||||||||
| Satety Standards | IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55011 (CISPR11); EN61000-3-2; EN61000-3-3; EN61000-4-2 | |||||||||||||||
