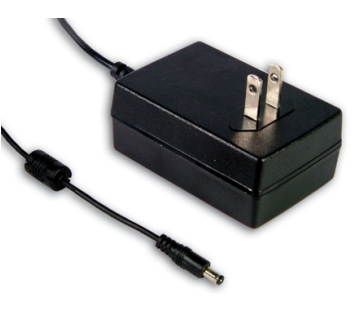

GSM25U Series
25W AC-DC Reliable Green Medical Adaptor
GSM25U Series Main Features:
Protections: Short circuit / Overload /
Over voltage
LED indicator for power on
Models:
Manufacturer:
Type:
Other features:
GSM25U05-P1J / GSM25U07-P1J
GSM25U09-P1J / GSM25U12-P1J
GSM25U15-P1J / GSM25U18-P1J
GSM25U24-P1J / GSM25U48-P1J
MEAN WELL
Adaptor
Medical safety approved (2 x MOPP)
according to ANSI/AAMI ES60601-1/-1-11
Extremely low leakage current
2 pole USA plugs, Class II power unit
No load power consumption <0.1W
Energy efficiency Level VI(except 5~9V
for Level V)
3 years warranty
Quote Request
| GSM25U05-P1J | GSM25U07-P1J | GSM25U09-P1J | GSM25U12-P1J | GSM25U15-P1J | GSM25U18-P1J | GSM25U24-P1J | GSM25U48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | ||||||||
| Input Voltage | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | ||||||||
| Output Current | 4A | 2.93A | 2.77A | 2.08A | 1.66A | 1.38A | 1.04A | 0.52A | ||||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | ||||||||
| Working Temperature | -25~+60°C | |||||||||||||||
| Satety Standards | IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1 CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) CNS13438, EAC TP TC 020 | |||||||||||||||
