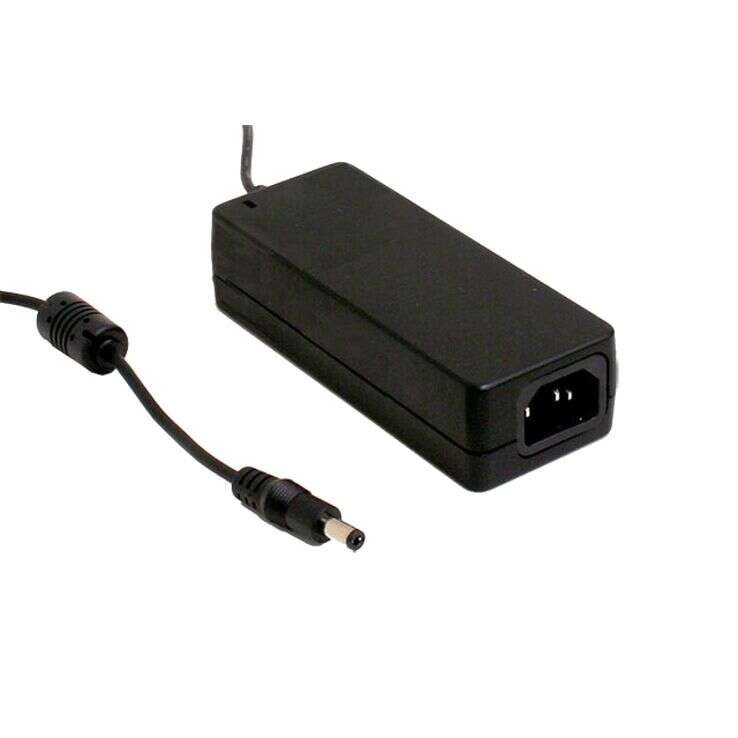

GSM40A Series
Medical Grade Power Supplies 25–40W
GSM40A Series Main Features:
No load power consumption <0.1W
Medical safety approved (MOPP level)
Low leakage current <100µA
Models:
Manufacturer:
Type:
Other features:
GSM40A05-P1J / GSM40A07-P1J
GSM40A09-P1J / GSM40A12-P1J
GSM40A15-P1J / GSM40A18-P1J
GSM40A24-P1J / GSM40A48-P1J
MEAN WELL
Adaptor
Protections: Short circuit / Overload /
Over voltage
Universal AC input / Full range
High efficiency
3 pole AC inlet IEC320-C14
Fully enclosed plastic case
Medical safety approved (MOPP level)
Class I power (with earth pin)
LED indicator for power on
ErP step2 compliant (level V)
3 years warranty
Quote Request
| GSM40A05-P1J | GSM40A07-P1J | GSM40A09-P1J | GSM40A12-P1J | GSM40A15-P1J | GSM40A18-P1J | GSM40A24-P1J | GSM40A48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 25 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||
| Input Voltage | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | ||||||||
| Output Current | 0.1~5A | 0.1~5.34A | 0.1~4.45A | 0.1~3.34A | 0.1~2.67A | 0.1~2.22A | 0.1~1.67A | 0.1~0.84A | ||||||||
| Output Voltage | 5V | 7.2V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| Dimensions | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | ||||||||
| Working Temperature | -40~+60°C | |||||||||||||||
| Satety Standards | ANSI/ AAMI ES60601-1/ 60601-1-11, TUV EN60601-1/ 60601-1-11 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011(CISPR11) class B, EN61000-3-2,3, FCC PART 18 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3 medical level, criteria A | |||||||||||||||
