Home / AC-DC Adaptor / GSM40B

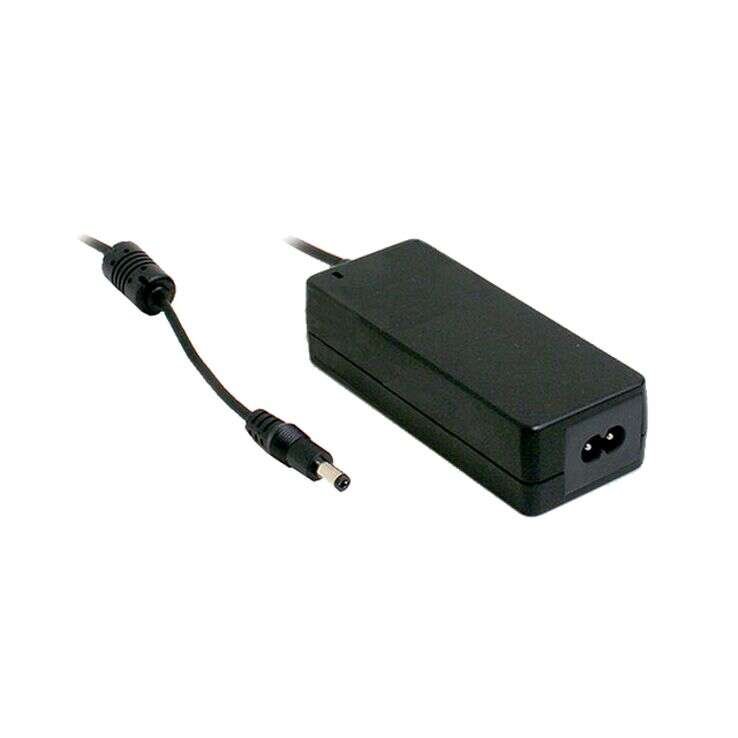

GSM40B Series

Medical Grade Power Supplies 25–40W

GSM40B

GSM40B Series Main Features:

No load power consumption <0.1W

Medical safety approved (2x MOPP between primary to secondary)

Low leakage current <50µA

Models:

Manufacturer:

Type:

Other features:

GSM40B05-P1J / GSM40B07-P1J
GSM40B09-P1J / GSM40B12-P1J
GSM40B15-P1J / GSM40B18-P1J
GSM40B24-P1J / GSM40B48-P1J

MEAN WELL

Adaptor

Protections: Short circuit / Overload /
Over voltage / Over temperature

Universal AC input / Full range

100% full load burn-in test

Energy efficiency level VI

2 pole AC inlet IEC320-C14

Fully enclosed plastic case

Medical safety approved (MOPP level)

Class II power (with earth pin)

Built-in active PFC function

3 years warranty

Quote Request

    GSM40B05-P1JGSM40B07-P1JGSM40B09-P1JGSM40B12-P1JGSM40B15-P1JGSM40B18-P1JGSM40B24-P1JGSM40B48-P1J
    Wattage2540404040404040
    Input Voltage80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC
    Output Current5A5.34A4.45A3.34A2.67A2.22A1.67A0.84A
    Output Voltage5V7.5V9V12V15V18V24V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingle
    DC output AdjustmentSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions113-370V113-370V113-370V113-370V113-370V113-370V113-370V113-370V
    Working Temperature-30~+60°C
    Satety StandardsANSI/AAMI ES60601-1-11, TUV EN60601-1/60601-1-11 approved
    EMC StandardsCompliance to EN55011 (CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B, CAN ICES-3 (B)/NMB-3(B) Complaicnce to EN61000-4-2,3,4,5,6,8,11, EN5502, EN60601-1-2, EN61204-3 medical level, criteria A
