Home / AC-DC Adaptor / GSM60B

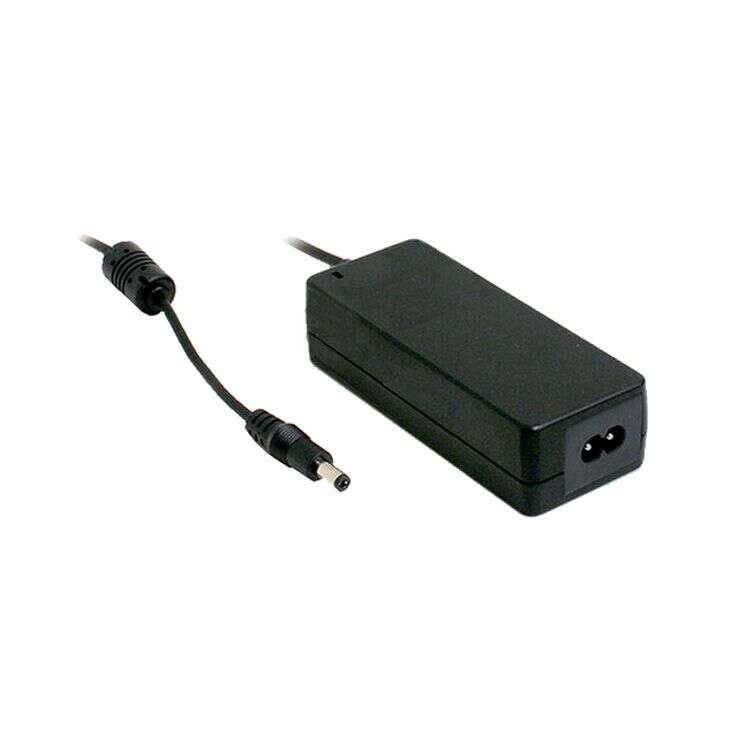

GSM60B Series
Medical Grade Power Supplies 30–60W
GSM60B Series Main Features:
Protections: Short circuit / Overload / Over voltage / Over temperature
No load power consumption <0.1W
Low leakage current <50µA
Models:
Manufacturer:
Type:
Other features:
GSM60B05-P1J / GSM60B07-P1J
GSM60B09-P1J / GSM60B12-P1J
GSM60B15-P1J / GSM60B18-P1J
GSM60B24-P1J / GSM60B48-P1J
MEAN WELL
Adaptor
Medical safety approved (2x MOPP be
-tween primary to secondary)
Universal AC input / Full range
Medical safety approved (MOPP level)
LED indicator for power on
100% full load burn-in test
Energy efficiency level VI (Except 5~9V
for level V)
2 pole AC inlet IEC320-C14
Fully enclosed plastic case
3 years warranty
Quote Request
| GSM60B05-P1J | GSM60B07-P1J | GSM60B09-P1J | GSM60B12-P1J | GSM60B15-P1J | GSM60B18-P1J | GSM60B24-P1J | GSM60B48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 45 | 54 | 60 | 60 | 60 | 60 | 60 | ||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | ||||||||
| Output Current | 6A | 6A | 6A | 5A | 4A | 3.33A | 2.5A | 1.25A | ||||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 120-370V | 120-370V | 120-370V | 120-370V | 120-370V | 120-370V | 120-370V | 120-370V | ||||||||
| Dimensions | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | ||||||||
| Working Temperature | -30-+60°C | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1-11, TUV EN60601-1/60601-1-11 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011 (CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B, CAN ICES-3 (B)/NMB-3(B) Complaicnce to EN61000-4-2,3,4,5,6,8,11, EN5502, EN60601-1-2, EN61204-3 medical level, criteria A | |||||||||||||||
