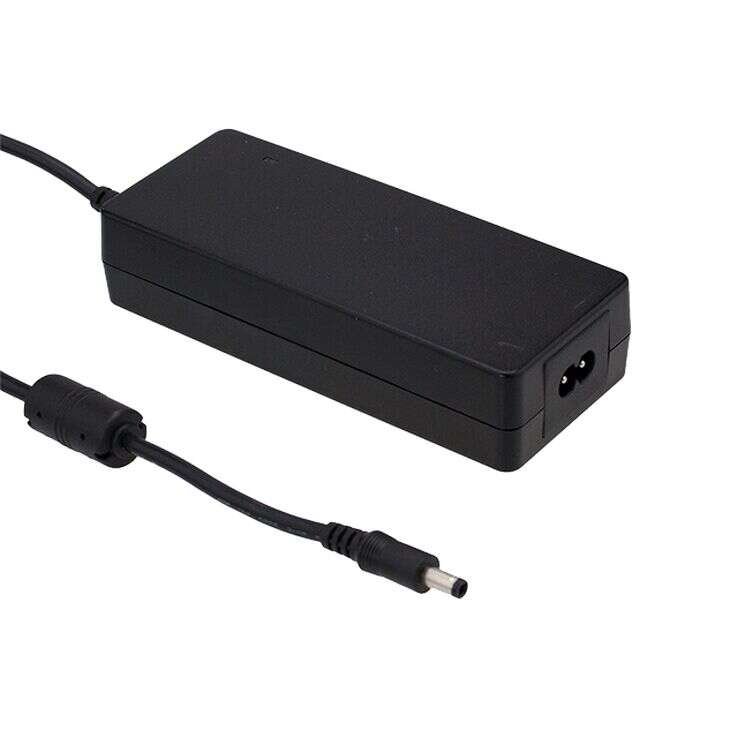

GSM90B Series
Medical Grade Power Supplies 90W
GSM90B Series Main Features:
Medical safety approved (2 MOPP between primary to secondary)
Low leakage current <100 A
Universal AC input/full range
Models:
Manufacturer:
Type:
Other features:
GSM90B12-P1M / GSM90B15-P1M
GSM90B19-P1M / GSM90B24-P1M
GSM90B48-P1M
MEAN WELL
Adaptor
Protections: Short circuit / Overload /
Over voltage / Over temperature
2 pole AC inlet IEC320-C8
Built-in active PFC function, PF>0.91
High efficiency up to 91%
Fully enclosed plastic case
No load power consumption<0.21W
ErP step 2 compliant (level)
Class power (without earth pin)
100% full load burn-in test
Optional lock type DC plug
3 years warranty
Quote Request
| GSM90B12-P1M | GSM90B15-P1M | GSM90B19-P1M | GSM90B24-P1M | GSM90B48-P1M | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 90 | 90 | 90 | 90 | 90 | |||||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | |||||||||||
| Output Current | 6.67A | 6A | 4.74A | 3.75A | 1.87A | |||||||||||
| Output Voltage | 12V | 15V | 19V | 24V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 145x60x32 | 145x60x32 | 145x60x32 | 145x60x32 | 145x60x32 | |||||||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | IEC60601-1/IEC60601-1-11, EN60601-1/EN60601-1-11, ANSI/AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14-Edition 3, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55011 (CISPR11), FCC PART 15/CISPR22, CAN ICES-3(B)/NMB-3(B) | |||||||||||||||
