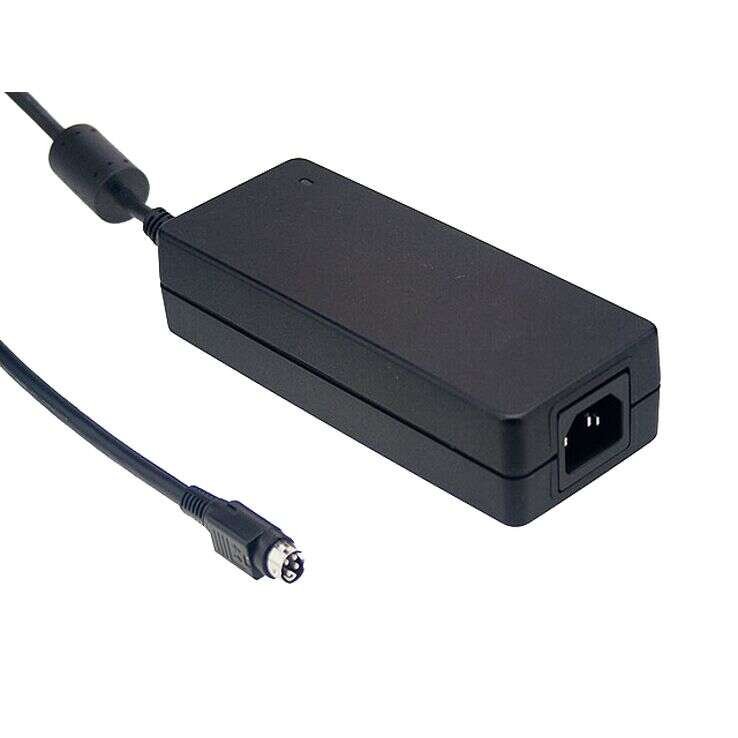

GST120A Series
External Power Supplies 120W
GST120A Series Main Features:
Global certificates
3 pole AC inlet IEC320-C14,Class I power unit
Models:
Manufacturer:
Type:
Other features:
GST120A12-R7B / GST120A15-R7B
GST120A20-P1M / GST120A20-R7B
GST120A24-P1M / GST120A24-R7B
GST120A48-P1M / GST120A48-R7B
MEAN WELL
Adaptor
Built-in active PFC function
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea
K-MEPS,AU/NZ MEPS,EU ErP and CoC Ver
-sion 5
No load power consumption <0.075W
Protections: Short circuit/Overload/
Over voltage/Over temperature
3 years warranty
Quote Request
| GST120A12-R7B | GST120A15-R7B | GST120A20-P1M | GST120A20-R7B | GST120A24-P1M | GST120A24-R7B | GST120A48-P1M | GST120A48-R7B | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | ||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||
| Output Current | 8.5A | 7A | 6A | 6A | 5A | 5A | 2.5A | 2.5A | ||||||||
| Output Voltage | 12V | 15V | 20V | 20V | 24V | 24V | 48V | 48V | ||||||||
| Dimensions | 167x67x35 | 167x67x35 | 167x67x35 | 167x67x35 | 167x67x35 | 167x67x35 | 167x67x35 | 167x67x35 | ||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 No. 62368-1, TUV EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J60950-1,,AS/NZS 60950.1, BIS IS13252, KC K60950-1,EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved, I/P-O/P: 3KVAC, I/P-O/P:100M Ohms / 500VDC / 25C/ 70% RH | |||||||||||||||
| EMC Standards | EN55032(CISPR32),FCC PART 15 / CISPR22CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1EAC TP TC 020,MSIP KN32, EN61000-3-2,GB9254, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
