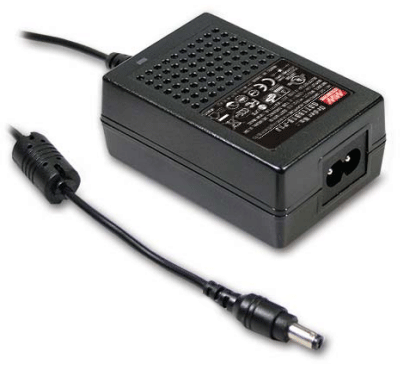

GST18B Series
18W AC-DC Reliable Green Industrial Adaptor
GST18B Series Main Features:
Protections: Short circuit / Overload /
Over voltage
Comply with EISA 2007/DoE, NRCan, Korea K-MEPS
Models:
Manufacturer:
Type:
Other features:
GST18B05-P1J / GST18B07-P1J
GST18B09-P1J / GST18B12-P1J
GST18B15-P1J / GST18B18-P1J
GST18B24-P1J / GST18B28-P1J
GST18B48-P1J
MEAN WELL
Adaptor
Global certificates
Universal AC Input / Full range
2 pole AC intel IEC320-C8, Class II power unit
No load power consumption <0.075W
Energy efficiency Level VI
Fully enclosed plastic case
Pass LPS
LED indicator for power on
3 years warranty
Quote Request
| GST18B05-P1J | GST18B07-P1J | GST18B09-P1J | GST18B12-P1J | GST18B15-P1J | GST18B18-P1J | GST18B24-P1J | GST18B28-P1J | GST18B48-P1J | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 15 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |||||||
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | |||||||
| Output Current | 3A | 2A | 2A | 1.5A | 1.2A | 1.0A | 0.75A | 0.64A | 0.375A | |||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 28V | 48V | |||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | |||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, BSMI CNS14336, CCC GB4943.1, ,PSE J62368-1, BS EN/ AS/NZS 60950.1 BIS IS13252, KC K60950-1, approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 | |||||||||||||||
