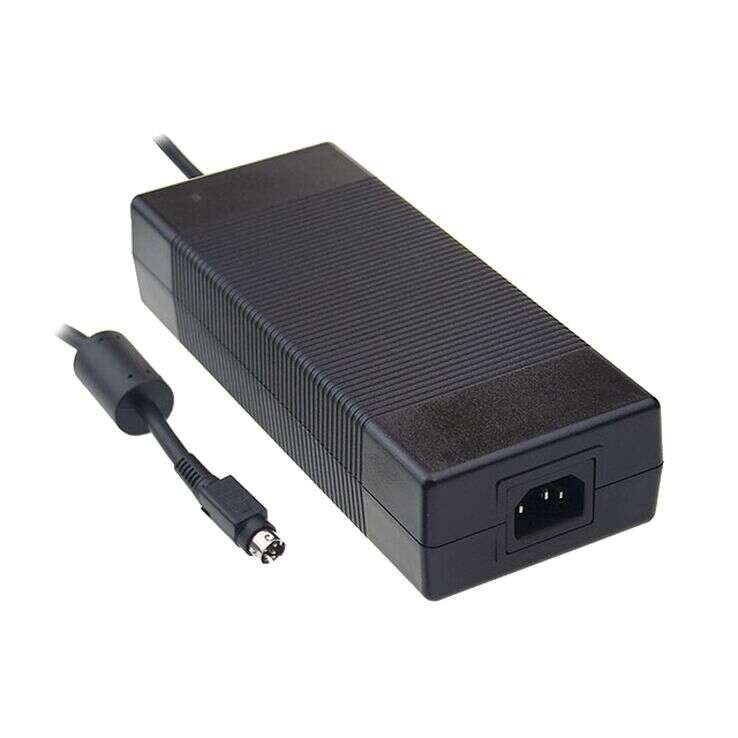

GST220A Series
External Power Supplies 180–221W
GST220A Series Main Features:
Fanless design with -30~+70°C working temperature
No load power consumption <0.15W
Models:
Manufacturer:
Type:
Other features:
GST220A12-R7B / GST220A15-R7B
GST220A20-R7B / GST220A24-R7B
GST220A48-R7B
MEAN WELL
Adaptor
Protections: Short circuit / Overload /
Over voltage
Universal AC Input / Full range
3 pole AC inlet IEC320-C14
Built-in active PFC function
Energy efficiency Level VI
Fully enclosed plastic case
Class I power (without earth pin)
Meet EISA 2007
3 years warranty
Quote Request
| GST220A12-R7B | GST220A15-R7B | GST220A20-R7B | GST220A24-R7B | GST220A48-R7B | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 180 | 201 | 220 | 221 | 221 | |||||||||||
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | |||||||||||
| Output Current | 15A | 13.4A | 11A | 9.2A | 4.6A | |||||||||||
| Output Voltage | 12V | 15V | 20V | 24V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC output Adjustment | 120-370V | 120-370V | 120-370V | 120-370V | 120-370V | |||||||||||
| Dimensions | 210x85x46 | 210x85x46 | 210x85x46 | 210x85x46 | 210x85x46 | |||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A | |||||||||||||||
