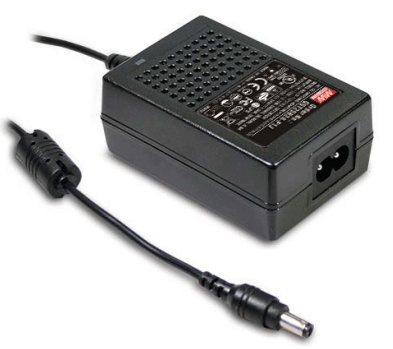

GST25B Series
25W AC-DC Reliable Green Industrial Adaptor
GST25B Series Main Features:
Protections: Short circuit / Overload /
Over voltage
Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version5
Models:
Manufacturer:
Type:
Other features:
GST25B05-P1J / GST25B07-P1J
GST25B09-P1J / GST25B12-P1J
GST25B15-P1J / GST25B18-P1J
GST25B24-P1J / GST25B28-P1J
GST25B48-P1J
MEAN WELL
Adaptor
Global certificates
Universal AC Input / Full range
2 pole AC inlet IEC320-C8, Class II power unit
No load power consumption <0.075W
Energy efficiency Level VI
Fully enclosed plastic case
Pass LPS
LED indicator for power on
3 years warranty
Quote Request
| GST25B05-P1J | GST25B07-P1J | GST25B09-P1J | GST25B12-P1J | GST25B15-P1J | GST25B18-P1J | GST25B24-P1J | GST25B28-P1J | GST25B48-P1J | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 22 | 23 | 25 | 25 | 25 | 25 | 25 | 25 | |||||||
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | |||||||
| Output Current | 4A | 2.93A | 2.55A | 2.08A | 1.66A | 1.38A | 1.04A | 0.89A | 0.52A | |||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 28V | 48V | |||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | |||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, ,PSE J62368-1 , AS/NZS 60950.1 BIS IS13252, KC K60950-1, approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 | |||||||||||||||
