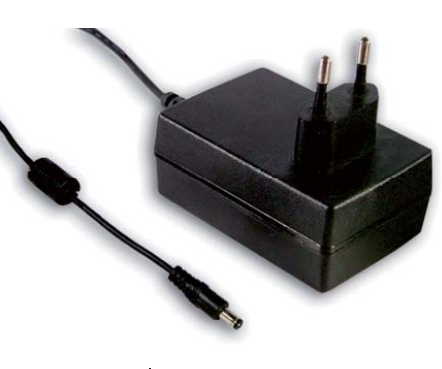

GST25E Series
25W AC-DC Reliable Green Industrial Adaptor
GST25E Series Main Features:
Protections: Short circuit / Overload /
Over voltage
Comply with EU ErP and CoC Version5
Models:
Manufacturer:
Type:
Other features:
GST25E05-P1J / GST25E07-P1J
GST25E09-P1J / GST25E12-P1J
GST25E15-P1J / GST25E18-P1J
GST25E24-P1J / GST25E28-P1J
GST25E48-P1J
MEAN WELL
Adaptor
Global certificates
Universal AC Input / Full range
2pole USA plugs, Class II power unit
No load power consumption <0.075W
Energy efficiency Level VI
Fully enclosed plastic case
Pass LPS
LED indicator for power on
3 years warranty
Quote Request
| GST25E05-P1J | GST25E07-P1J | GST25E09-P1J | GST25E12-P1J | GST25E15-P1J | GST25E18-P1J | GST25E24-P1J | GST25E28-P1J | GST25E48-P1J | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 22 | 23 | 25 | 25 | 25 | 25 | 25 | 25 | |||||||
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | |||||||
| Output Current | 4A | 2.93A | 2.55A | 2.08A | 1.66A | 1.38A | 1.04A | 0.89A | 0.52A | |||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 28V | 48V | |||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | |||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1(optional) approved | |||||||||||||||
