Home / AC-DC Adaptor / GST280A

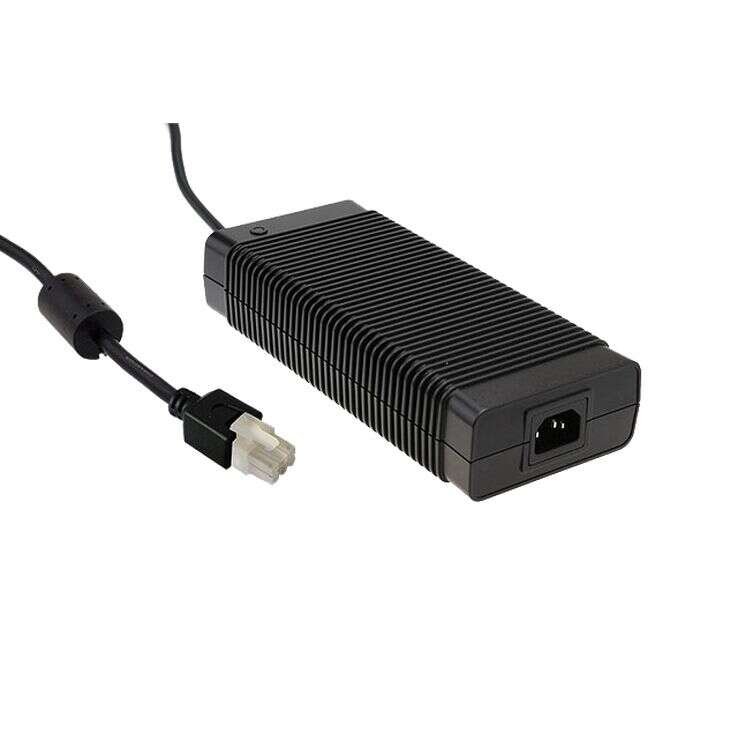

GST280A Series
External Power Supplies 252–280.32W
GST280A Series Main Features:
Protections: Short circuit / Overload /
Over voltage
No load power consumption <0.15W
Models:
Manufacturer:
Type:
Other features:
GST280A12-C6P / GST280A15-C6P
GST280A20-C6P / GST280A24-C6P
GST280A48-C6P
MEAN WELL
Adaptor
Fanless design with -30~+70°C work
-ing temperature
Universal AC Input / Full range
3 pole AC inlet IEC320-C14
Built-in active PFC function
Energy efficiency Level VI
Fully enclosed plastic case
Class I power (without earth pin)
Meet EISA 2007
3 years warranty
Quote Request
| GST280A12-C6P | GST280A15-C6P | GST280A20-C6P | GST280A24-C6P | GST280A48-C6P | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 252 | 255 | 260 | 280.08 | 280.32 | |||||||||||
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | |||||||||||
| Output Current | 21A | 17A | 13A | 11.67A | 5.84A | |||||||||||
| Output Voltage | 12V | 15V | 20V | 24V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 120-370V | 120-370V | 120-370V | 120-370V | 120-370V | |||||||||||
| Dimensions | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | |||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A | |||||||||||||||
