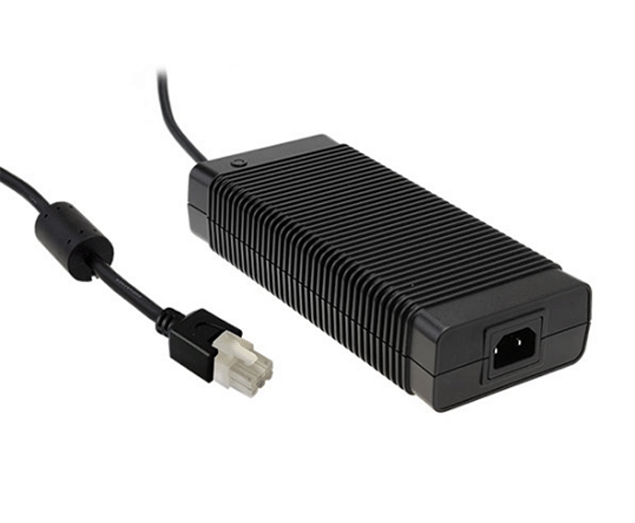

GST360B Series
360W AC-DC High Reliability Industrial Adaptor
GST360B Series Main Features:
Protections: Short circuit / Overload /
Over voltage / Over temperature
Comply with international energy-saving standards
Models:
Manufacturer:
Type:
Other features:
GST360B12-C8P / GST360B15-C8P
GST360B24-C6P / GST360B36-C6P
GST360B48-C6P / GST360B55-C6P
MEAN WELL
Adaptor
Global certificates
Universal AC Input / Full range
450W peak power(3 sec.)
2 pole AC inlet IEC320-C8, Class II power unit
No load power consumption <0.5W
Energy efficiency Level VI
Fully enclosed plastic case
LED indicator for power on
3 years warranty
Quote Request
| GST360B12-C8P | GST360B15-C8P | GST360B24-C6P | GST360B36-C6P | GST360B48-C6P | GST360B55-C6P | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 330 | 340.5 | 360 | 360 | 360 | 360 | ||||||||||
| Input Voltage | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | ||||||||||
| Output Current | 27.5A | 22.7A | 15A | 10A | 7.5A | 6.55A | ||||||||||
| Output Voltage | 12V | 15V | 24V | 36V | 48V | 55V | ||||||||||
| Dimensions | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | ||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 | |||||||||||||||
