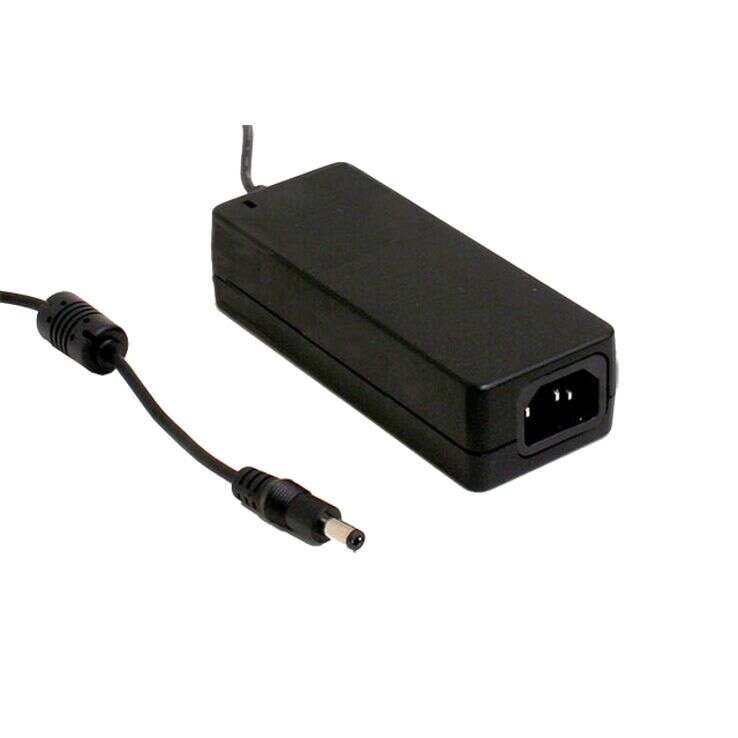

GST40A Series
External Power Supplies 25–40W
GST40A Series Main Features:
Protections: Short circuit / Overload /
Over voltage
No load power consumption <0.075W
Models:
Manufacturer:
Type:
Other features:
GST40A05-P1J / GST40A07-P1J
GST40A09-P1J / GST40A12-P1J
GST40A15-P1J / GST40A18-P1J
GST40A24-P1J / GST40A48-P1J
MEAN WELL
Adaptor
Fanless design with -30~+70°C work
-ing temperature
Universal AC Input / Full range
3 pole AC inlet IEC320-C14
Pass LPS
Energy efficiency Level VI
Fully enclosed plastic case
Class I power (without earth pin)
Meet EISA 2007
3 years warranty
Quote Request
| GST40A05-P1J | GST40A07-P1J | GST40A09-P1J | GST40A12-P1J | GST40A15-P1J | GST40A18-P1J | GST40A24-P1J | GST40A48-P1J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 25 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | ||||||||
| Output Current | 5A | 5.34A | 4.45A | 3.34A | 2.67A | 2.22A | 1.67A | 0.84A | ||||||||
| Output Voltage | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 127-370V | 127-370V | 127-370V | 127-370V | 127-370V | 127-370V | 127-370V | 127-370V | ||||||||
| Dimensions | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | 125x50x31.5 | ||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A | |||||||||||||||
