Home / AC-DC Adaptor / GST60A

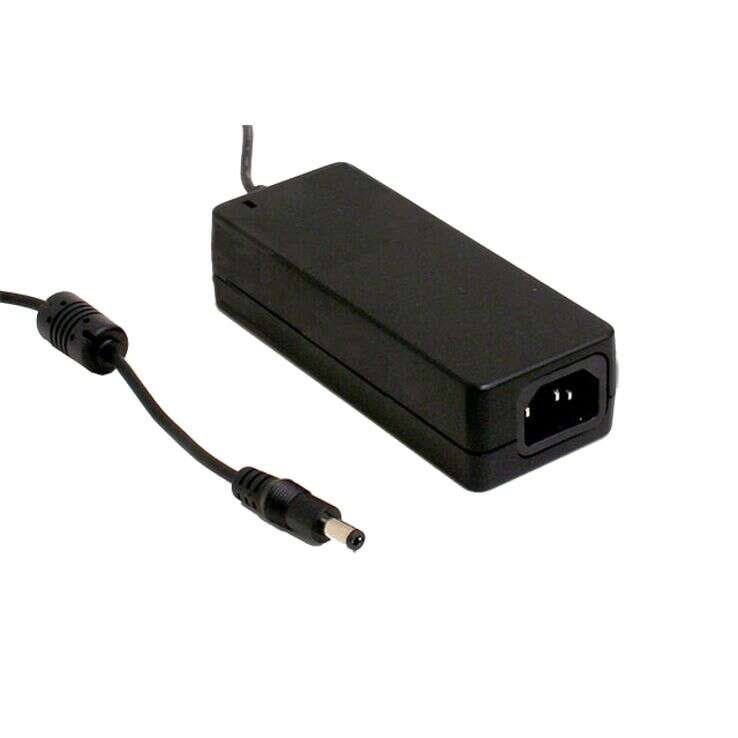

GST60A Series

External Power Supplies 30–60W

GST60A

GST60A Series Main Features:

Protections: Short circuit / Overload / Over voltage / Over temperature

No load power consumption <0.075W

Models:

Manufacturer:

Type:

Other features:

GST60A05-P1J / GST60A07-P1J
GST60A09-P1J / GST60A12-P1J
GST60A15-P1J / GST60A18-P1J
GST60A24-P1J / GST60A48-P1J

MEAN WELL

Adaptor

Fanless design with -30~+70°C work
-ing temperature

Universal AC Input / Full range

2pole USA plugs, Class II power unit

No load power consumption <0.075W

Energy efficiency Level VI

Fully enclosed plastic case

Pass LPS

LED indicator for power on

3 years warranty

Quote Request

    GST60A05-P1JGST60A07-P1JGST60A09-P1JGST60A12-P1JGST60A15-P1JGST60A18-P1JGST60A24-P1JGST60A48-P1J
    Wattage3045546060606060
    Input Voltage90~264VAC90~264VAC90~264VAC90~264VAC90~264VAC90~264VAC90~264VAC90~264VAC
    Output Current6A6A6A5A4A3.33A2.5A1.25A
    Output Voltage5V7.5V9V12V15V18V24V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment135-370V135-370V135-370V135-370V135-370V135-370V135-370V135-370V
    Dimensions125x50x31.5125x50x31.5125x50x31.5125x50x31.5125x50x31.5125x50x31.5125x50x31.5125x50x31.5
    Working Temperature-30~+70°C
    Satety StandardsUL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved
    EMC StandardsCompliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A
