Home / DC-DC Module Type / MDD01-N

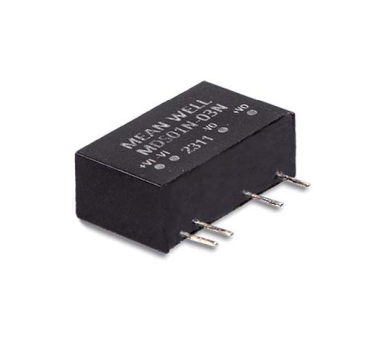

MDD01-N Series
1W SIP Package DC-DC Medical Grade Unregulated Converter
MDD01-N Series Main Features:
SIP7 package with international standard pinout
Operating temperature range -40~+95℃
Comply with IEC/UL62368-1 and LVD IEC60601-1
Models:
Manufacturer:
Type:
Other features:
MDD01L-05N / MDD01L-12N
MDD01L-15N / MDD01M-05N
MDD01M-12N / MDD01M-15N
MDD01N-05N / MDD01N-12N
MDD01N-15N
MEAN WELL
Module
Medical safety approved (1 xMOPP/2xMOO
P) according tolEC60601-1
Low patient leakage current <2μA
Protections: Short circuit (Continuous)
6KVDC hight I/O isolation (Reinforced insula-tion)
Low cost
3 years warranty
Quote Request
| MDD01L-05N | MDD01L-12N | MDD01L-15N | MDD01M-05N | MDD01M-12N | MDD01M-15N | MDD01N-05N | MDD01N-12N | MDD01N-15N | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| Input Voltage | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | |||||||
| Output Current | ±10~100mA | ±5~42mA | ±4~34mA | ±10~100mA | ±5~42mA | ±4~34mA | ±10~100mA | ±5~42mA | ±4~34mA | |||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | |||||||
| Dimensions | 19.7x7.1x11.5 | 19.7x7.1x11.5 | 19.7x7.1x11.5 | 19.7x7.1x11.5 | 19.7x7.1x11.5 | 19.7x7.1x11.5 | 19.7x7.1x11.5 | 19.7x7.1x11.5 | 19.7x7.1x11.5 | |||||||
| Working Temperature | -40~+95°C | |||||||||||||||
| Satety Standards | IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032, BS EN/EN55011, BS EN/EN61000-4-2, BS EN/EN61000-4-3 | |||||||||||||||
