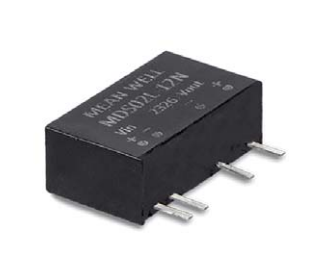

MDS02-N Series

2W SIP Package DC-DC Medical Grade Unregulated Converter

MDS02N

MDS02-N Series Main Features:

SIP7 package with international standard pinout

Operating temperature range -40~+95℃

Comply with IEC/UL62368-1 and LVD IEC60601-1

Models:

Manufacturer:

Type:

Other features:

MDS02L-03N / MDS02L-05N
MDS02L-12N / MDS02L-15N
MDS02M-03N / MDS02M-05N
MDS02M-12N / MDS02M-15N
MDS02N-03N / MDS02N-05N
MDS02N-12N / MDS02N-15N

MEAN WELL

Module

Medical safety approved (1 xMOPP/2xMOO
P) according tolEC60601-1

Low patient leakage current <2μA

Protections: Short circuit (Continuous)

6KVDC hight I/O isolation (Reinforced insula-tion)

Low cost

3 years warranty

Quote Request

    MDS02L-03NMDS02L-05NMDS02L-12NMDS02L-15NMDS02M-03NMDS02M-05NMDS02M-12NMDS02M-15NMDS02N-03NMDS02N-05NMDS02N-12NMDS02N-15N
    Wattage222222222222
    Input Voltage4.5~5.5V4.5~5.5V4.5~5.5V4.5~5.5V10.8~13.2V10.8~13.2V10.8~13.2V10.8~13.2V21.6~26.4V21.6~26.4V21.6~26.4V21.6~26.4V
    Output Current61~606mA40~400mA17~167mA13~134mA61~606mA40~400mA17~167mA13~134mA61~606mA40~400mA17~167mA13~134mA
    Output Voltage3.3V5V12V15V3.3V5V12V15V3.3V5V12V15V
    Dimensions19.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.519.7x7.1x11.5
    Working Temperature-40~+95°C
    Satety StandardsIEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved
    EMC StandardsBS EN/EN55032, BS EN/EN55011, BS EN/EN61000-4-5, BS EN/EN61000-4-6
