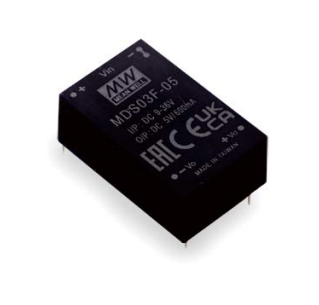

MDS03 Series
3W DIP Package DC-DC Medical Grade Regulated Converter
MDS03 Series Main Features:
DIP24 package with international standard pinout
Wide operating temperature range -40~+90℃
Models:
Manufacturer:
Type:
Other features:
MDS03F-05 / MDS03F-12
MDS03F-15 / MDS03G-05
MDS03G-12 / MDS03G-15
MEAN WELL
Module
Medical safety approved (1 xMOPP/2xMOO
P) according tolEC60601-1
Low patient leakage current <2μA
Protections: Short circuit (Continuous)
6KVDC hight I/O isolation (Reinforced insula-tion)
Low cost
3 years warranty
Quote Request
| MDS03F-05 | MDS03F-12 | MDS03F-15 | MDS03G-05 | MDS03G-12 | MDS03G-15 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | ||||||||||
| Output Current | 0~600mA | 0~250mA | 0~200mA | 0~600mA | 0~250mA | 0~200mA | ||||||||||
| Output Voltage | 5V | 12V | 15V | 5V | 12V | 15V | ||||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | ||||||||||
| Working Temperature | -40~+90°C | |||||||||||||||
| Satety Standards | IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved | |||||||||||||||
| EMC Standards | BS EN/EN55011 | |||||||||||||||
