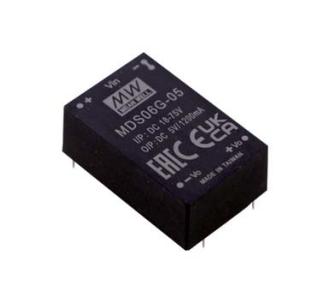

MDS06 Series
6W DIP Package DC-DC Medical Grade Regulated Converter
MDS06 Series Main Features:
MDS06 series are 6W isolated and regulated module type medical grade DC-DC converter with DIP 24 package
Models:
Manufacturer:
Type:
Other features:
MDS06F-05 / MDS06F-12
MDS60F-15 / MDS06G-05
MDS06G-12 / MDS06G-15
MEAN WELL
Module
DIP 24 package with international standard pinout
4:1 wide input range
Low patient leakage current <5μA
Protections: Short circuit (Continuous) / Overload
6KVDC or 4.2KVAC high I/O isolation (Rein-
forced isolation)
3 years warranty
Quote Request
| MDD06F-05 | MDD06F-12 | MDD06F-15 | MDD06G-05 | MDD06G-12 | MDD06G-15 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | ||||||||||
| Output Current | ±60~600mA | ±25~250mA | ±20~200mA | ±60~600mA | ±25~250mA | ±20~200mA | ||||||||||
| Output Voltage | ±5V | ±12V | ±15V | ±5V | ±12V | ±15V | ||||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | ||||||||||
| Working Temperature | -40~+90°C | |||||||||||||||
| Satety Standards | IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved | |||||||||||||||
| EMC Standards | BS EN/EN55011 | |||||||||||||||
