MHB75 Series

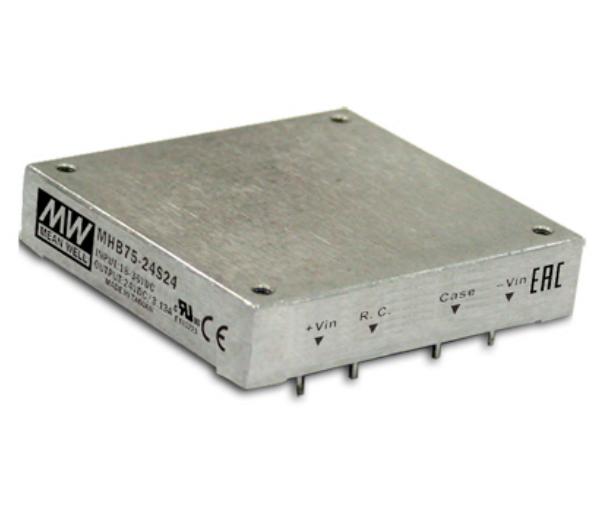

75W DC-DC Half-Brick Regulated Single Output Converter
MHB75 Series Main Features:
2:1 wide input range
Half-brick size (2.28"X2 .4"X0.5") with industry standard pin out
1.5KVDC I/O isolation
High efficiency up to 89%
Models:
Manufacturer:
Type:
Other features:
MHB75-12S05 / MHB75-12S12
MHB75-12S24 / MHB75-24S05
MHB75-24S12 / MHB75-24S24
MHB75-48S05 / MHB75-48S12
MHB75-48S24
MEAN WELL
Module
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Over tem
-perature / Over current / Over voltage
Built-in remote ON/OFF control
Built-in remote sense function
Five-sided shield metal case
Output 3.3V/15V available
Approvals: UL / CUL / EAC / CE / UKCA
3 years warranty
Quote Request
| MHB75-12S05 | MHB75-12S12 | MHB75-12S24 | MHB75-24S05 | MHB75-24S12 | MHB75-24S24 | MHB75-48S05 | MHB75-48S12 | MHB75-48S24 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | ||||||||
| Input Voltage | 9~18V | 9~18V | 9~18V | 18~36V | 18~36V | 18~36V | 36~72V | 36~72V | 36~72V | ||||||||
| Output Current | 0~15A | 0~6.25A | 0~3.13A | 0~15A | 0~6.25A | 0~3.13A | 0~15A | 0~6.25A | 0~3.13A | ||||||||
| Output Voltage | 5V | 12V | 24V | 5V | 12V | 24V | 5V | 12V | 24V | ||||||||
| Dimensions | 57.9x61x12.7 | 57.9x61x12.7 | 57.9x61x12.7 | 57.9x61x12.7 | 57.9x61x12.7 | 57.9x61x12.7 | 57.9x61x12.7 | 57.9x61x12.7 | 57.9x61x12.7 | ||||||||
| Working Temperature | -40~+100°C | ||||||||||||||||
| Satety Standards | UL60950-1, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class A with external components (please refer to "EMC Suggestion Circuit"), EAC TP TC 020 | ||||||||||||||||
