NGE45 Series
External Power Supplies 28.1–45.1W
NGE45 Series Main Features:
NGE45 is a highly reliable, 45W wall-mounted style single-output green adaptor series, which is compact and convenient for carry
Models:
Manufacturer:
Type:
Other features:
NGE45I05-P1J / NGE45I09-P1J
NGE45I12-P1J / NGE45I15-P1J
NGE45I18-P1J / NGE45I24-P1J
NGE45I48-P1J
MEAN WELL
Adaptor

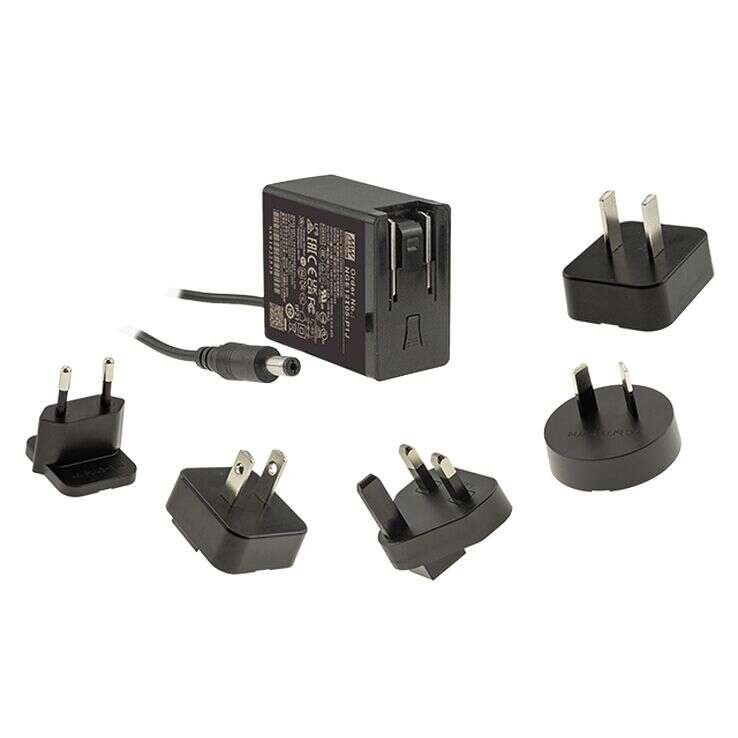

Interchangeable AC plugs
Universal AC Input / Full range
Ultra slim (30mm)
No load power consumption <0.075W
Energy efficiency Level VI
Class II power (no earth pin)
Protections: Short circuit / Overload /
Over voltage
Extremely leakage current <100uA
Pass LPS
3 years warranty
Quote Request
[wpforms id="1665" title="false"]
| NGE45I05-P1J | NGE45I09-P1J | NGE45I12-P1J | NGE45I15-P1J | NGE45I18-P1J | NGE45I24-P1J | NGE45I48-P1J | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 28.1 | 40.5 | 45 | 45 | 45 | 45 | 45 | |||||||||
| Input Voltage | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | 80~264VAC 113~370VDC | |||||||||
| Output Current | 5.63A | 4.5A | 3.75A | 3A | 2.5A | 1.88A | 0.94A | |||||||||
| Output Voltage | 5V | 9V | 12V | 15V | 18V | 24V | 48V | |||||||||
| Dimensions | 62x30x65 | 62x30x65 | 62x30x65 | 62x30x65 | 62x30x65 | 62x30x65 | 62x30x65 | |||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32)/EN55011 , FCC Part15, CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15, CNS15936, GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8 BS EN/EN61000-4-11 | |||||||||||||||
