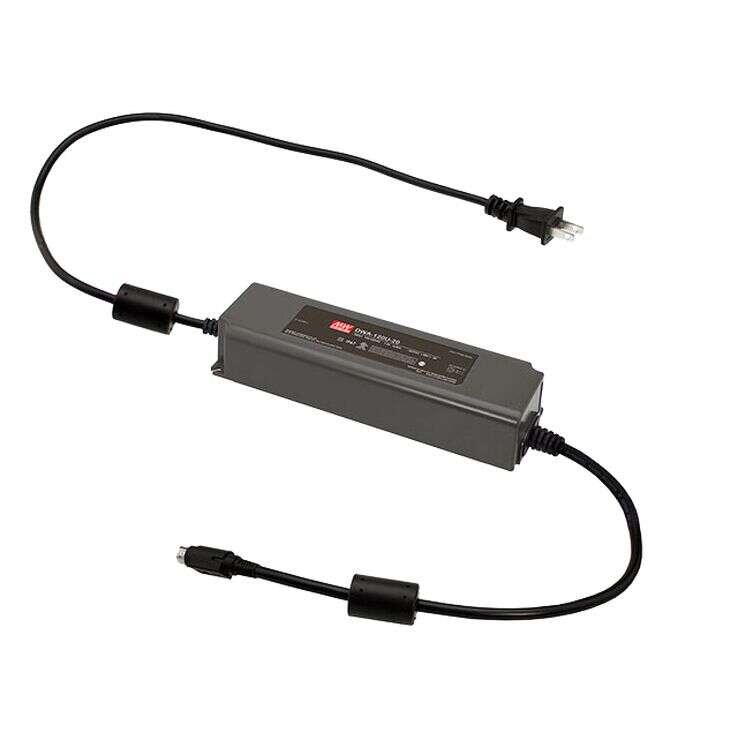

OWA-120U Series
External Power Supplies 120–124.2W
OWA-120U Series Main Features:
OWA-120U is one 120W single-output external LED power supply series. Pairing the North American type of AC plug and prevailing DC connectors
Models:
Manufacturer:
Type:
Other features:
OWA-120U-12 / OWA-120U-15
OWA-120U-20 / OWA-120U-24
OWA-120U-30 / OWA-120U-36
OWA-120U-42 / OWA-120U-48
OWA-120U-54
MEAN WELL
Adaptor
Universal AC input / Full range
High efficiency up to 90.5%
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Class II power unit, no FG
Built-in active PFC function
Fully isolated plastic case
Fanless design, cooling by free air convection
No load power consumption <0.15W
5 years warranty
Quote Request
| OWA-120U-12 | OWA-120U-15 | OWA-120U-20 | OWA-120U-24 | OWA-120U-30 | OWA-120U-36 | OWA-120U-42 | OWA-120U-48 | OWA-120U-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||
| Output Current | 10A | 8A | 6A | 5A | 4A | 3.4A | 2.9A | 2.5A | 2.3A | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Dimensions | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | |||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | UL8750 listed, CSA C22.2 No.250.13-12; IP67 (for power body) approved | |||||||||||||||
| EMC Standards | Compliance to FCC Part15 | |||||||||||||||
