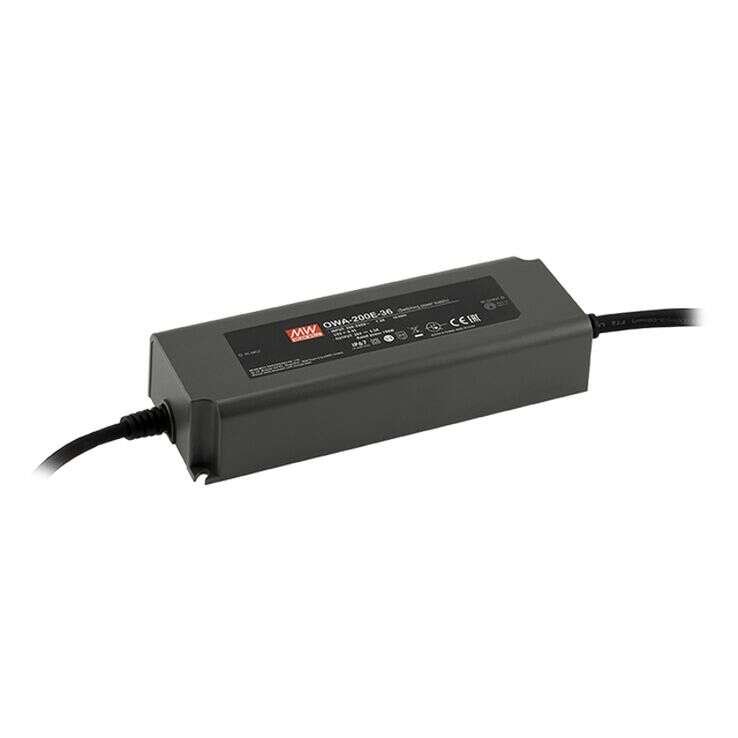

OWA-200E Series
External Power Supplies 180–200W
OWA-200E Series Main Features:
OWA-200E is a 200W AC/DC class II (no FG) external power supply series pinpointing the moisture proof feature
Models:
Manufacturer:
Type:
Other features:
OWA-200E-12 / OWA-200E-20
OWA-200E-24 / OWA-200E-36
OWA-200E-42 / OWA-200E-48
OWA-200E-54
MEAN WELL
Adaptor
Class II power unit, no FG
Built-in active PFC function
High efficiency up to 94%
No load power consumption <0.15W
Energy efficiency level VI
Comply with EU ErP an CoC Version 5
Fanless design, cooling by free air convection
Protections: Short circuit / Overload /
Over voltage / Over temperature
5 years warranty
Quote Request
| OWA-200E-12 | OWA-200E-20 | OWA-200E-24 | OWA-200E-36 | OWA-200E-42 | OWA-200E-48 | OWA-200E-54 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 180 | 200 | 199 | 199 | 199 | 200 | 200 | |||||||||
| Input Voltage | 90~264VAC 254~370VDC | 90~264VAC 254~370VDC | 90~264VAC 254~370VDC | 90~264VAC 254~370VDC | 90~264VAC 254~370VDC | 90~264VAC 254~370VDC | 90~264VAC 254~370VDC | |||||||||
| Output Current | 15A | 10A | 8.3A | 5.55A | 4.75A | 4.17A | 3.71A | |||||||||
| Output Voltage | 12V | 20V | 24V | 36V | 42V | 48V | 54V | |||||||||
| Dimensions | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | |||||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for (OWA-200E-48,54); EAC TP TC 004, IP67 (for power body) approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32)Class B, EN55035, EN55014-1, EN61000-3-2/3; EAC TP TC 020 | |||||||||||||||
