OWA-200U Series
External Power Supplies 180–200W
OWA-200U Series Main Features:

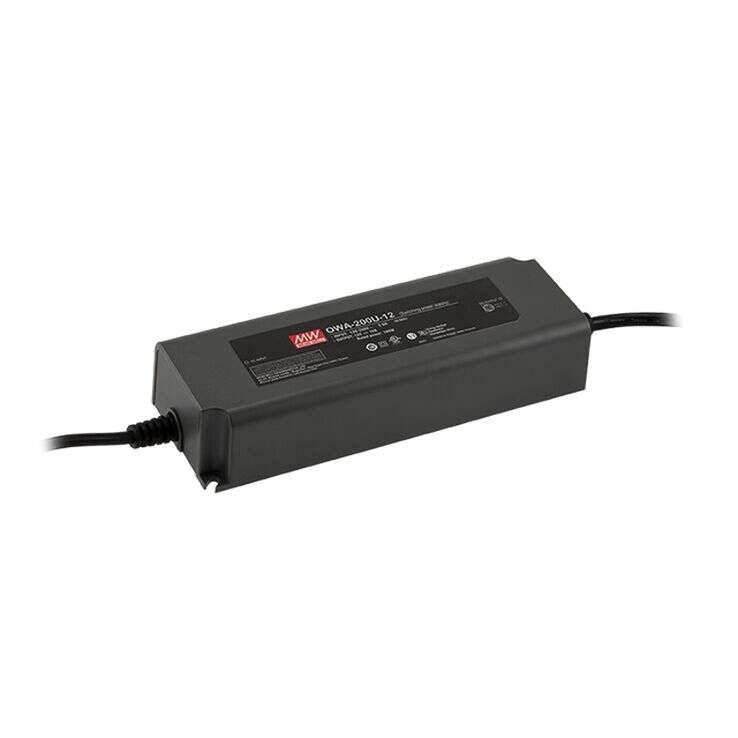

OWA-200U is one 200W single-output external LED power supply series. Pairing the North American type of AC plug and prevailing DC connectors
Models:
Manufacturer:
Type:
Other features:
OWA-200U-12 / OWA-200U-20
OWA-200U-24 / OWA-200U-36
OWA-200U-42 / OWA-200U-48
OWA-200U-54
MEAN WELL
Adaptor
Universal AC input / Full range
High efficiency up to 94%
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Fully isolated plastic case IP67
Class II power unit, no FG
Built-in active PFC function
Fanless design, cooling by free air convection
No load power consumption <0.15W
5 years warranty
Quote Request
| OWA-200U-12 | OWA-200U-20 | OWA-200U-24 | OWA-200U-36 | OWA-200U-42 | OWA-200U-48 | OWA-200U-54 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 180 | 200 | 199 | 199 | 199 | 200 | 200 | |||||||||
| Input Voltage | 100~264VAC 142~370VDC | 100~264VAC 142~370VDC | 100~264VAC 142~370VDC | 100~264VAC 142~370VDC | 100~264VAC 142~370VDC | 100~264VAC 142~370VDC | 100~264VAC 142~370VDC | |||||||||
| Output Current | 15A | 10A | 8.3A | 5.55A | 4.75A | 4.17A | 3.71A | |||||||||
| Output Voltage | 12V | 20V | 24V | 36V | 42V | 48V | 54V | |||||||||
| Dimensions | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | |||||||||||
| Working Temperature | -40~+80°C | |||||||||||||||
| Satety Standards | UL62368-1; IP67 (for power body) approved; Design refer with UL1012 | |||||||||||||||
| EMC Standards | Compliance to FCC Part15 | |||||||||||||||
