Home / AC-DC Adaptor / OWA-60U

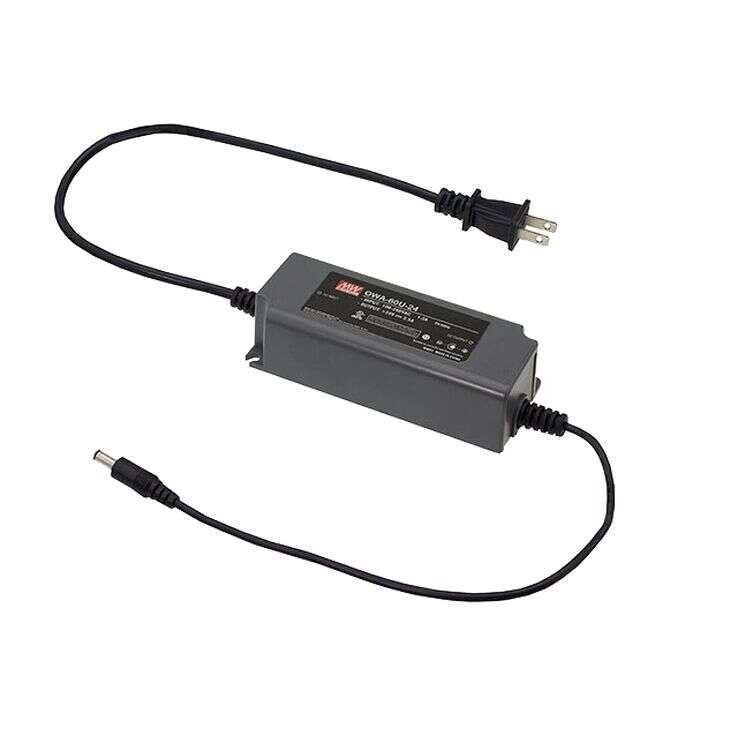

OWA-60U Series
External Power Supplies 60W
OWA-60U Series Main Features:
OWA-60U is one 60W single-output external LED power supply series. Pairing then North American type of AC plug and the prevailing DC connectors
Models:
Manufacturer:
Type:
Other features:
OWA-60U-12 / OWA-60U-15
OWA-60U-20 / OWA-60U-24
OWA-60U-30 / OWA-60U-36
OWA-60U-42 / OWA-60U-48
OWA-60U-54
MEAN WELL
Adaptor
Universal AC input / Full range
High efficiency up to 91%
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Class II power unit, no FG
Class 2 power unit
Fully isolated plastic case
Fanless design, cooling by free air convection
No load power consumption <0.15W
3 years warranty
Quote Request
| OWA-60U-12 | OWA-60U-15 | OWA-60U-20 | OWA-60U-24 | OWA-60U-30 | OWA-60U-36 | OWA-60U-42 | OWA-60U-48 | OWA-60U-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||
| Output Current | 5A | 4A | 3A | 2.5A | 2A | 1.67A | 1.25A | 1.25A | 1.12A | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Dimensions | 130x53x35 | 130x53x35 | 130x53x35 | 130x53x35 | 130x53x35 | 130x53x35 | 130x53x35 | 130x53x35 | 130x53x35 | |||||||
| Working Temperature | -40~+80°C | |||||||||||||||
| Satety Standards | UL8750 listed, CSA C22.2 No.250-13-12(except for 42V,48V,54V);IP67 approved for power body | |||||||||||||||
| EMC Standards | Compliance to FCC Part15 | |||||||||||||||
