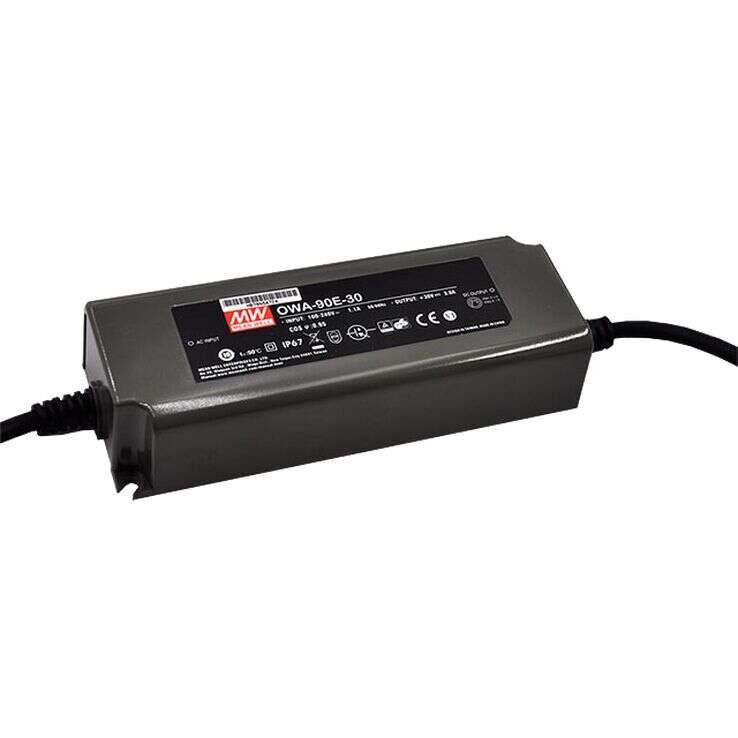

OWA-90E Series
External Power Supplies 90W
OWA-90E Series Main Features:
OWA-90E is a 90W AC/DC class II (without earth pin) external power supply series pinpointing the moisture proof feature. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation
Models:
Manufacturer:
Type:
Other features:
OWA-90E-12 / OWA-90E-15
OWA-90E-20 / OWA-90E-24
OWA-90E-30 / OWA-90E-36
OWA-90E-42 / OWA-90E-48
OWA-90E-54
MEAN WELL
Adaptor
Universal AC input / Full range
High efficiency up to 91%
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Class II power unit, no FG
Built-in active PFC function
Energy efficiency Level VI
Fanless design, cooling by free air convection
No load power consumption <0.15W
5 years warranty
Quote Request
| OWA-90E-12 | OWA-90E-15 | OWA-90E-20 | OWA-90E-24 | OWA-90E-30 | OWA-90E-36 | OWA-90E-42 | OWA-90E-48 | OWA-90E-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||
| Output Current | 7.5A | 6A | 4.5A | 3.75A | 3A | 2.5A | 2.15A | 1.88A | 1.67A | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Dimensions | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | |||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | EN61558-1,-2-16 listed; EN60335-1 listed (except for OWA-90E-42,48,54); EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class B, EN55014-1, EN61000-3-2, -3; EAC TP TC 020 | |||||||||||||||
