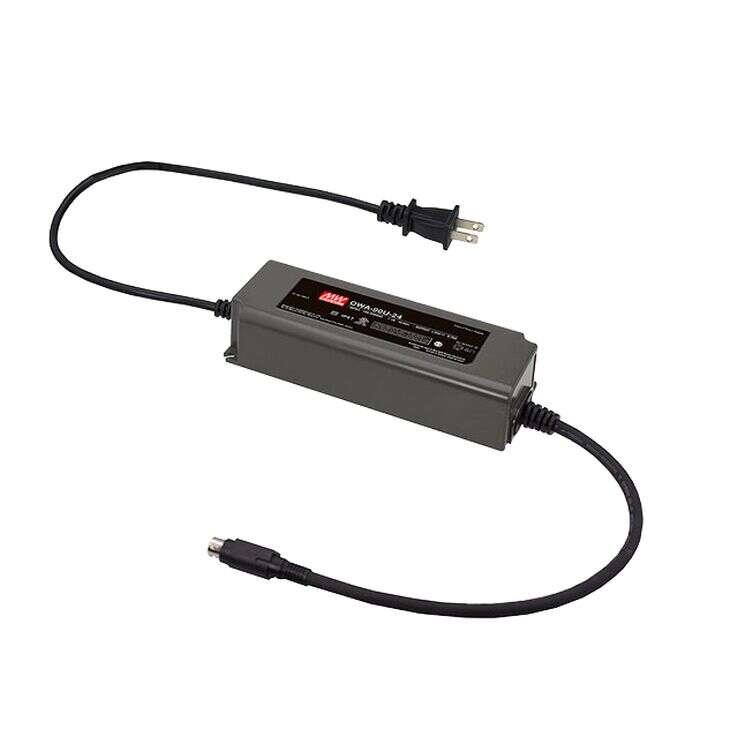

OWA-90U Series
External Power Supplies 90W
OWA-90U Series Main Features:
OWA-90U is one 90W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors
Models:
Manufacturer:
Type:
Other features:
OWA-90U-12 / OWA-90U-15
OWA-90U-20 / OWA-90U-24
OWA-90U-30 / OWA-90U-36
OWA-90U-42 / OWA-90U-48
OWA-90U-54
MEAN WELL
Adaptor
Universal AC input / Full range
High efficiency up to 91%
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Class II power unit, no FG
Class 2 power unit (except OWA-90U-12-15)
Comply with EISA 2007 DoE and NRCan
Fanless design, cooling by free air convection
No load power consumption <0.15W
5 years warranty
Quote Request
| OWA-90U-12 | OWA-90U-15 | OWA-90U-20 | OWA-90U-24 | OWA-90U-30 | OWA-90U-36 | OWA-90U-42 | OWA-90U-48 | OWA-90U-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||
| Output Current | 7.5A | 6A | 4.5A | 3.75A | 3A | 2.5A | 2.15A | 1.88A | 1.67A | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Dimensions | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | |||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | UI8750 listed, CSA C22.2 No.250.13-12(except for 42V, 48V 54V); IP67 (for main body) approved | |||||||||||||||
| EMC Standards | Compliance to FCC Part15 | |||||||||||||||
